Norsat International Inc.

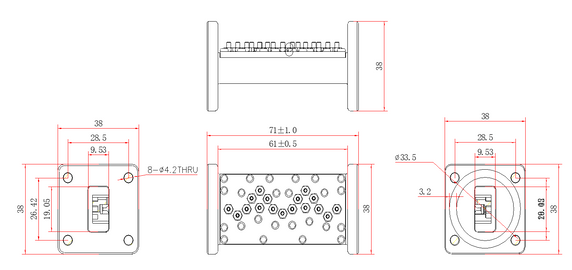

Norsat TRF-KU Transmit Reject Filter for LNB Redundancy Switch
Product Code:
TRF-KU
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.35 KGS
Width:
3.80
(cm)
Height:
3.80
(cm)
Depth:
7.10
(cm)
$1,470.17
| KEY SPECIFICATIONS | |
| Center Frequency | 11.725 GHz |
| Frequency Range | 10.70 – 12.75 GHz |
| Out-Of-Band Rejection | ≥ 80 dB @13.75 - 14.50 GHz |
| RF SPECIFICATIONS | |
| Insertion Loss | 0.3 dB max, 0.2 dB typ. |
| VSWR | 1.25 : 1 max |
| ELECTRICAL SPECIFICATIONS | |
| Impedance | 50 Ω |
| INTERFACE SPECIFICATIONS | |
| Connector | WR75 (Waveguide), PBR120 (Flange) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Barometric Pressure | 55 KPa - 106 KPa |
| IP Rating | IP 65 |
| Relative Humidity | 5% - 95% |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -40°C to +85°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 38 mm |
| Product Length | 71 mm |
| Product Weight | 0.35 kg |
| Product Width | 38 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Unit Package Dimensions | 217 mm x 122 mm x 100 mm |
| Unit Package Height | 100 mm |
| Unit Package Length | 217 mm |
| Unit Package Weight | 0.3 kg |
| Unit Package Width | 122 mm |
| Warranty | 3 years |
