Norsat International Inc.

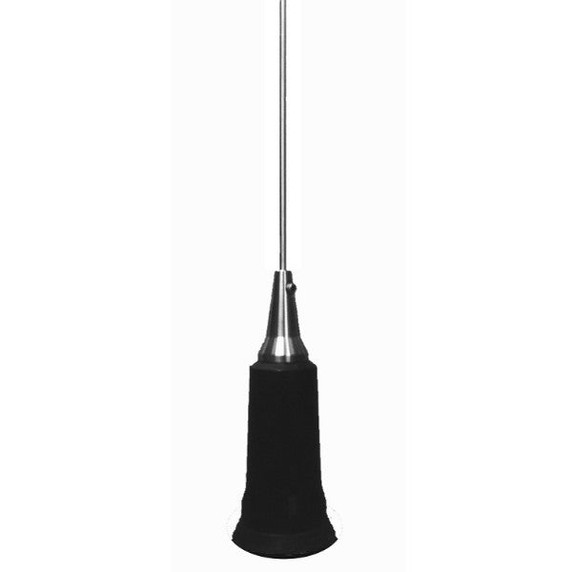

Norsat SVB-1562SB Mobile omni, 2 dBd, 1/2 wave, 138-174 MHz
Product Code:
SVB-1562SB
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
$285.00
• Covers entire 138-174 MHz band with 2 dBd gain
• When mounted on fiberglass, must use a minimum 6" metallic disc for ground plane
• Weather proof base with integral sealing gasket and stainless steel ferrule for corrosion resistance
| ANTENNA SPECIFICATIONS | |
| Antenna Type | whip |
| Single Port | Yes |
| ELECTRICAL SPECIFICATIONS | |
| Average Power Input Max (W) | 50 |
| Band Cat | 118 - 138 MHz, 138 - 174 MHz, 174 - 225 MHz |
| Bandwidth (Mhz) | 36 |
| Frequency Range (Mhz) | 138 - 174 |
| Gain (Dbd) | 2 |
| Impedance (Ω) | 50 |
| Polarization | Vertical |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Range (°C) | -40 to +60 |
| PHYSICAL SPECIFICATIONS | |
| Diameter (In) | 1.83 |
| Finish | Black |
| Length/Height (In) | 37 |
| Mounting Configurations | Upright |
| Thickness (In) | - |
| Weight (Lbs) | 0.5 |
| Width (In) | - |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 Kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Aurora, Ontario, Canada |
| Harmonized System Code | 8517710000 |
| Unit Package Weight | 0.6 lbs |
| Warranty | 1 year |
