Norsat International Inc.
Norsat SVB-0660SB Mobile omni, 0 dBd, 66-118 MHz
Product Code:
SVB-0660SB
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
$202.50

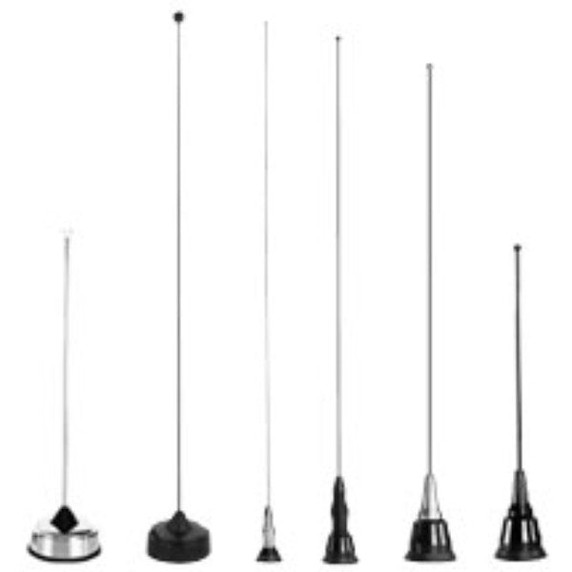

• Available in three styles.
• The Excelsior Spring Pin Base; Excelsior Base and the Chrome Nut style
• All models are supplied with a cutting chart to tune within the respective frequency bands
| ANTENNA SPECIFICATIONS | |
| Antenna Type | whip |
| Single Port | Yes |
| ELECTRICAL SPECIFICATIONS | |
| Average Power Input Max (W) | 100 |
| Band Cat | 25 - 80 MHz, 80 - 138 MHz |
| Bandwidth (Mhz) | 4.5 |
| Frequency Range (Mhz) | 66 - 118 |
| Polarization | Vertical |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Range (°C) | -40 to +60 |
| PHYSICAL SPECIFICATIONS | |
| Diameter (In) | 1.83 |
| Finish | Black |
| Length/Height (In) | 49 |
| Mounting Configurations | Upright |
| Thickness (In) | - |
| Weight (Lbs) | 0.65 |
| Width (In) | - |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 Kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Aurora, Ontario, Canada |
| Harmonized System Code | 8517710000 |
| Unit Package Weight | 0.75 lbs |
| Warranty | 1 year |
