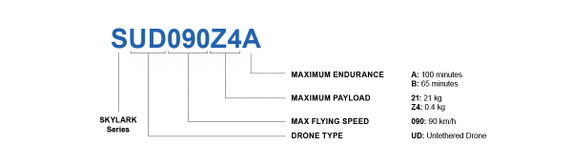

Norsat SUD090Z4A SKYLARK Long Endurance Patrol Unmanned Aircraft
The SUD090Z4A unmanned aerial vehicle is a helicopter platform that focuses on ultra-long endurance and distance. The extremely small-sized, lightweight and portable unmanned helicopter is capable of flying for 100 minutes. It is designed for ultra-long flights, ease of transport and quick deployment. The basic essentials of the unmanned helicopter platform include the aircraft itself and ground control station. A single operator can utilize and operate the entire system.
The SUD090Z4A can carry diverse payloads. It is capable of creating solutions for various industries owing to its design, operation and capabilities. The unmanned helicopter possesses quick-release mount so that different payloads can be instantly swapped and Shadow can be deployed without having to wait for payload installations. It can carry a different payloads: photoelectric load, spotlight, and megaphone.
| KEY SPECIFICATIONS | |
| Ascending Speed | 4 m/s |
| Ceiling | 5100m (Legal flight) |
| Descending Speed | 4 m/s |
| Hovering Accuracy Horizontal | ±1.5m (GNSS is operational) |
| Hovering Accuracy Vertical | ±2.0m (GNSS is operational) |
| Maximum Payload | 0.4 kg |
| Maximum Taking-Off Weight | 7 kg |
| Payload | Standard Gimbal Camera |
| Signal Transmission | RF |
| Type | Rotary wing UAV |
| UAV Type | Rotary wing UAV |
| WIFI Transmission Frequency | 2.4 GHz |
| ELECTRICAL SPECIFICATIONS | |
| Power | 1500 W |
| Power Mode | Electric |
| RC Control Frequency | 2405 - 2475 MHz; 5175 - 5825 MHz |
| Voltage | 25.2 V |
| Voltage For Payload | 12 V |
| ENVIRONMENTAL SPECIFICATIONS | |
| Camera Temperature Operational | -20°C to +60°C |
| Gimbal Vibration | 0.00573° (1000 μrad) |
| Security | Low power fail safe setting / Lost communication fail safe setting |
| Temperature Operational | -20°C to +55°C |
| Temperature Storage | -20°C to +45°C |
| Wind Resistance | Level 7 ( Windspeed: 17 m/s) |
| PHYSICAL SPECIFICATIONS | |
| AI Recognition Identification Target | Human, vehicle, sea vessel |
| AI Recognition Performance Indicator | Recall ≥ 90%; Accuracy ≥ 80%; Number of Simultaneous Multiple Targets (Recognition) ≥ 20; Tracking Miss ≤ 32 Pixels; AI Recognition Support |
| Camera Dimensions | 115.3 x 114.3 x 141.9 mm |
| Camera Lens Type | RGB + Thermal Imager + Laser Rangefinder |
| Camera Quick Load/Release | Support |
| Camera Tracking Function | Support |
| Camera Weight | 520 g |
| Control Method | Auto/Manual/Guided |
| Gimbal Controllable Range | Pitch: -120° ~ +30°; Roll: ±45°; Yaw: ±170° |
| Gimbal Mechanical Range | Pitch: -130° ~ +40°; Roll: ±50°; Yaw: ±174° |
| IR Thermal Imager Color Palette | White hot, black hot, pseudocolor (False-color) |
| IR Thermal Imager Detection Range | Person (1.7x0.5m): 700m; Vehicle (3x6m): 4000m |
| IR Thermal Imager Detector Pixel | 640 x 512 |
| IR Thermal Imager Focal Length | 25 mm |
| IR Thermal Imager Focusing Method | Fixed |
| IR Thermal Imager Identification Range | Person (1.7x0.5m): 100m; Vehicle (3x6m): 500m |
| IR Thermal Imager Operating Wavelength | 12μm |
| IR Thermal Imager Recognition Range | Person (1.7x0.5m): 200m; Vehicle (3x6m): 1000m |
| IR Thermal Imager Sensitivity | ≤50mK@F.0 @25°C |
| Laser Measuring Distance | 5 - 1200m |
| Laser Wavelength | 905nm |
| Mission Payload | U3 Megaphone Spotlight |
| Product Weight | 7 kg |
| Product Weight With Battery | 6.6 kg |
| Sensor | 1/3" VRS-HD5101 |
| Sensor Detection Range | Person (1.7x0.5m): 4000m; Vehicle (3x6m): 24000m |
| Sensor Identification Range | Person (1.7x0.5m): 500m; Vehicle (3x6m): 3000m |
| Sensor Lens Focal Length | F = 5.1mm - 51mm (10X optical zoom) |
| Sensor Pixels | 2MP |
| Sensor Recognition Range | Person (1.7x0.5m): 1100m; Vehicle (3x6m): 6000m |
| Sensor Resolution | 1920 x 1080 |
| Storage File Format | FAT32 (32GB)/ex-FAT (128GB) |
| Storage Memory Card Type | microSD card (up to 128 GB capacity) |
| Unfold Product Height | 442 mm |
| Unfold Product Length | 998 mm |
| Unfold Product Width | 157 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | - |
| Ex Works | Hong Kong |
| Harmonized System Code | 8806929010 |
| Unit Package Dimensions | 710 x 490 x 410 mm; 500 X 400 X 250 mm; 500 x 400 x 250 mm |
| Unit Package Weight | 12 kg |
| Warranty | 1 year |
