Norsat International Inc.

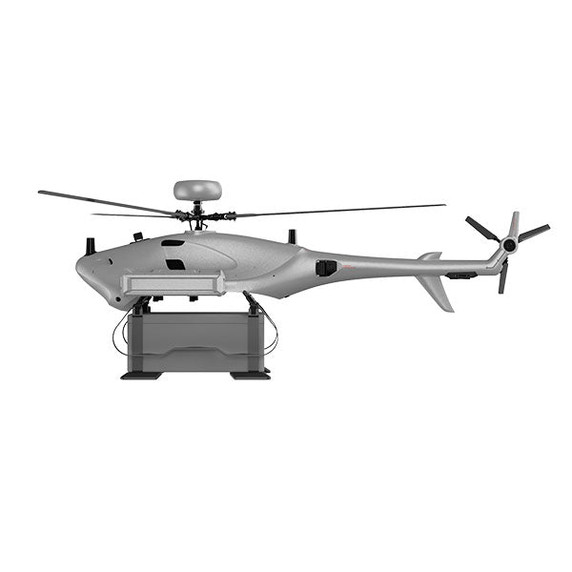

Norsat SUD09021B SKYLARK Unmanned Transport Helicopters
Product Code:
SUD09021B
Condition:
New
Availability:
10 - 12 Weeks
Weight:
45.00 KGS
$130,778.00
The SUD09021B unmanned helicopter is heavy lift platform. It can carry heavy payloads or cargo at extreme altitudes. It is modular in design. Landing gear is foldable and tail boom is detachable. It is simple and convenient to maintain, has a short time interval for re-deployment, is not limited by plateau air pressure, and is suitable for performing tasks at high altitudes.
The unmanned aircraft has an advanced AI intelligent control system. The AI control system enables the unmanned helicopter to realize autonomous control during take-off, landing and flight routes. The SUD09021B also possesses parachute which is deployed in various circumstances for cargo safety.
| KEY SPECIFICATIONS | |
| Ascending Speed | 5 m/s |
| Ceiling | 5100m (Legal flight) |
| Descending Speed | 5 m/s |
| Hovering Accuracy Horizontal | ±1.5m (GNSS is operational); ±0.1m (RTK is operational) |
| Hovering Accuracy Vertical | ±2.0m (GNSS is operational); ±0.1m (RTK is operational) |
| Maximum Payload | 21 kg (single battery); 15 kg (dual battery) |
| Maximum Taking-Off Weight | 45 kg |
| Payload | Cargo Box |
| Signal Transmission | RF |
| UAV Type | Rotary wing UAV |
| WIFI Transmission Frequency | 2.4 GHz |
| ELECTRICAL SPECIFICATIONS | |
| Power | 8000 W |
| Power Mode | Electric |
| RC Control Frequency | 1360 - 1444 MHz |
| Voltage | 58.8 V |
| Voltage For Payload | 12 V |
| ENVIRONMENTAL SPECIFICATIONS | |
| Camera Temperature Operational | -20°C to +60°C |
| Gimbal Vibration | 0.00573° (1000 μrad) |
| Security | Low power fail safe setting / Lost communication fail safe setting |
| Temperature Operational | -10°C to +55°C |
| Temperature Storage | -20°C to +60°C |
| Wind Resistance | Level 7 ( Windspeed: 17 m/s) |
| PHYSICAL SPECIFICATIONS | |
| AI Recognition Identification Target | Human, vehicle, sea vessel |
| AI Recognition Performance Indicator | Recall ≥ 90%; Accuracy ≥ 80%; Number of Simultaneous Multiple Targets (Recognition) ≥ 20; Tracking Miss ≤ 32 Pixels; AI Recognition Support |
| Camera Dimensions | 115.3 x 114.3 x 141.9 mm |
| Camera Lens Type | RGB + Thermal Imager + Laser Rangefinder |
| Camera Quick Load/Release | Support |
| Camera Tracking Function | Support |
| Camera Weight | 520 g |
| Control Method | Auto/Manual/Guided |
| Gimbal Controllable Range | Pitch: -120° ~ 30°; Roll: ±45°; Yaw: ±170° |
| Gimbal Mechanical Range | Pitch: -130° ~ +40°; Roll: ±50°; Yaw: ±174° |
| IR Thermal Imager Color Palette | White hot, black hot, pseudocolor (False-color) |
| IR Thermal Imager Detection Range | Person (1.7x0.5m): 700m; Vehicle (3x6m): 4000m |
| IR Thermal Imager Detector Pixel | 640 x 512 |
| IR Thermal Imager Focal Length | 25 mm |
| IR Thermal Imager Focusing Method | Fixed |
| IR Thermal Imager Identification Range | Person (1.7x0.5m): 100m; Vehicle (3x6m): 500m |
| IR Thermal Imager Operating Wavelength | 12μm |
| IR Thermal Imager Recognition Range | Person (1.7x0.5m): 200m; Vehicle (3x6m): 1000m |
| IR Thermal Imager Sensitivity | ≤50mK@F.0 @25°C |
| Laser Measuring Distance | 5 - 1200m |
| Laser Wavelength | 905nm |
| Mission Payload | Transportation Box |
| Product Weight | 45 kg |
| Product Weight With Battery | 30 kg |
| Sensor | 1/3" VRS-HD5101 |
| Sensor Detection Range | Person (1.7x0.5m): 4000m; Vehicle (3x6m): 24000m |
| Sensor Identification Range | Person (1.7x0.5m): 500m; Vehicle (3x6m): 3000m |
| Sensor Lens Focal Length | F = 5.1mm - 51mm (10X optical zoom) |
| Sensor Pixels | 2MP |
| Sensor Recognition Range | Person (1.7x0.5m): 1100m; Vehicle (3x6m): 6000m |
| Sensor Resolution | 1920 x 1080 |
| Storage File Format | FAT32 (32GB)/ex-FAT (128GB) |
| Storage Memory Card Type | microSD card (up to 128 GB capacity) |
| Unfold Product Height | 639 mm |
| Unfold Product Length | 1997 mm |
| Unfold Product Width | 523 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | - |
| Ex Works | Hong Kong |
| Harmonized System Code | 8806929010 |
| Unit Package Dimensions | 1200 x 800 x 600 mm; 1110 x 440 x 180 mm; 360 x 270 x 200 mm; 350 x 190 x 230 mm |
| Unit Package Weight | 94 kg |
| Warranty | 1 year |
