Norsat International Inc.

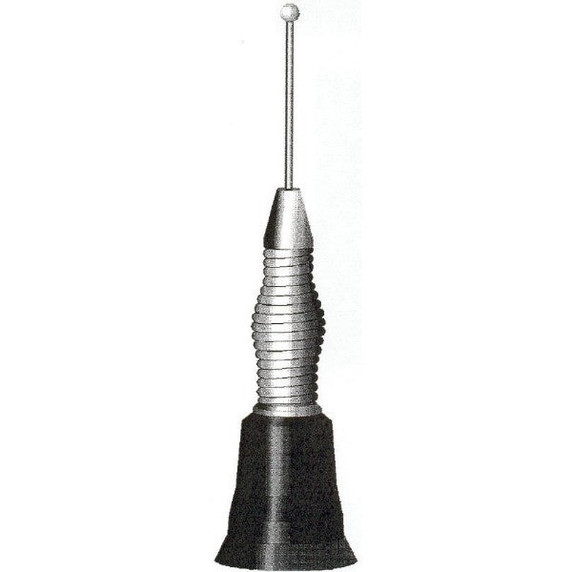

Norsat SUB-4303 Mobile omni, 3 dBd, 5/8 wave, 430-470 MHz
Product Code:
SUB-4303
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
$105.00
• Long-lasting, reliable service
• Do not require a ground plane and are ideal for installations on fiberglass vehicles (i.e. boats)
• Stainless Steel ferrule for corrosion resistance
• End fed 5/8 wave
• Do not require a ground plane and are ideal for installations on fiberglass vehicles (i.e. boats)
• Stainless Steel ferrule for corrosion resistance
• End fed 5/8 wave
| ANTENNA SPECIFICATIONS | |
| Antenna Type | whip |
| Single Port | Yes |
| ELECTRICAL SPECIFICATIONS | |
| Average Power Input Max (W) | 100 |
| Band Cat | 430 - 470 MHz |
| Bandwidth (%) | 3.5 |
| Bandwidth (Mhz) | 15 |
| Frequency Range (Mhz) | 430 - 470 |
| Gain (Dbd) | 3 |
| Impedance (Ω) | 50 |
| Pattern | Omni-directional |
| Polarization | Vertical |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Range (°C) | -40 to +60 |
| PHYSICAL SPECIFICATIONS | |
| Diameter (In) | 1.83 |
| Finish | Chrome |
| Length/Height (In) | 15.5 |
| Mounting Configurations | Upright |
| Thickness (In) | - |
| Weight (Lbs) | 0.5 |
| Width (In) | - |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 Kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Aurora, Ontario, Canada |
| Harmonized System Code | 8517710000 |
| Unit Package Weight | 0.6 lbs |
| Warranty | 1 year |
