Norsat International Inc.

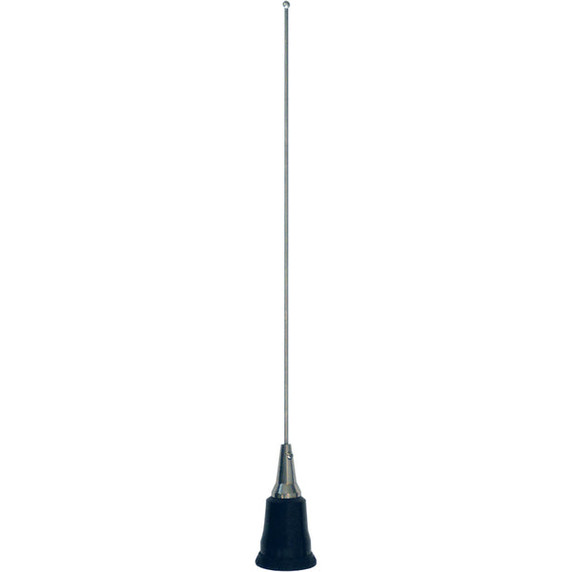

Norsat SUB-3803 Mobile omni antenna, 3 dBd, 380-400 MHz
Product Code:
SUB-3803
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
$157.50
• High impact UV resistant ABS housing
• Stainless steel fittings
• Stands up to severe environmental conditions
| ANTENNA SPECIFICATIONS | |
| Antenna Type | whip |
| Single Port | Yes |
| ELECTRICAL SPECIFICATIONS | |
| Average Power Input Max (W) | 100 |
| Band Cat | 380 - 430 MHz |
| Bandwidth (Mhz) | 20 |
| Frequency Range (Mhz) | 380 - 400 |
| Gain (Dbd) | 3 |
| Impedance (Ω) | 50 |
| Pattern | Omni-directional |
| Polarization | Vertical |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Range (°C) | -40 to +60 |
| PHYSICAL SPECIFICATIONS | |
| Diameter (In) | 1.83 |
| Length/Height (In) | 14.88 |
| Thickness (In) | - |
| Weight (Lbs) | 0.5 |
| Width (In) | - |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Aurora, Ontario, Canada |
| Harmonized System Code | 8517710000 |
| Unit Package Weight | 0.6 lbs |
| Warranty | 1 year |
5 customers are viewing this product
Details
• High impact UV resistant ABS housing
• Stainless steel fittings
• Stands up to severe environmental conditions
| ANTENNA SPECIFICATIONS | |
| Antenna Type | whip |
| Single Port | Yes |
| ELECTRICAL SPECIFICATIONS | |
| Average Power Input Max (W) | 100 |
| Band Cat | 380 - 430 MHz |
| Bandwidth (Mhz) | 20 |
| Frequency Range (Mhz) | 380 - 400 |
| Gain (Dbd) | 3 |
| Impedance (Ω) | 50 |
| Pattern | Omni-directional |
| Polarization | Vertical |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Range (°C) | -40 to +60 |
| PHYSICAL SPECIFICATIONS | |
| Diameter (In) | 1.83 |
| Length/Height (In) | 14.88 |
| Thickness (In) | - |
| Weight (Lbs) | 0.5 |
| Width (In) | - |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Aurora, Ontario, Canada |
| Harmonized System Code | 8517710000 |
| Unit Package Weight | 0.6 lbs |
| Warranty | 1 year |
