Norsat International Inc.

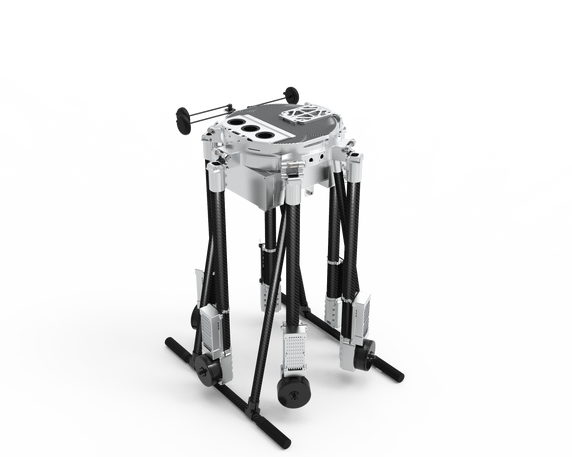

Norsat STD30020C SKYLARK Industry-specific Tethered UAV - Max Ceiling 300m
STD300 Series is an industry-specific tethered UAV with a net load of 15kg@300m and 20Kg@ 200m. Supplied by ground electric through tethered cable, it is hover in the air for 24 hours. The tethered UAV with base station equipment can be used for emergency communication during disasters like flood, earthquake, typhoon, etc. It can also carry Optical Zoom Lens Camera, Electrical Optical Pod, Communication Relay Station, Ad-Hoc Equipment, IR, High Intensity Light, Loudspeaker for different scenarios.
| KEY SPECIFICATIONS | |
| Ascending Speed | 4 m/s |
| Cable Length | 312m |
| Ceiling | 300 m |
| Descending Speed | 2 m/s |
| Hovering Accuracy Horizontal | ±10cm (RTK) |
| Hovering Accuracy Vertical | ±10cm (RTK) |
| Maximum Payload | 15 kg @ 300m; 20 kg @ 200m |
| Maximum Taking-Off Weight | 40 kg |
| Optical Fiber | Single-mode |
| Payload | Depends on the device to be mounted |
| Signal Transmission | Wireless or Wire |
| Support Antenna | Omnidirectional Antenna |
| UAV Type | Hexa-copter Tether UAV |
| WIFI Transmission Frequency | 2.4 GHz |
| ELECTRICAL SPECIFICATIONS | |
| Power | Industrial power or generator |
| Power Mode | 50 Hz |
| Voltage | AC 380V 10kw |
| Voltage For Payload | 48V |
| ENVIRONMENTAL SPECIFICATIONS | |
| Security | Automatic landing when ground power supply is interrupted; Automatic landing when the control signal is interrupted |
| Temperature Operational | -25°C to +55°C |
| Temperature Storage | -25℃ to 55℃ |
| Wind Resistance | Level 6 |
| PHYSICAL SPECIFICATIONS | |
| Control Method | Manual/automatic control by remote control; Automatic control from ground station |
| Fold Product Height | 810 mm |
| Fold Product Length | 610 mm |
| Fold Product Width | 480 mm |
| Function | Automatic cable retracting and releasing, intelligent automatic cable arrangement |
| Mission Payload | Communication base station equipment,gimbal and EO & IR cameras, lighting/loudspeaker systems |
| Product Weight | 26 kg |
| Releasing Cable | Automatic |
| Retracting Cable | Automatic |
| Roter Size | 30'' |
| Symmetric Motor Wheelbase | 1630 mm |
| Unfold Product Height | 825 mm |
| Unfold Product Length | 2392 mm |
| Unfold Product Width | 1525 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | - |
| Harmonized System Code | 8806939090 |
| Unit Package Dimensions | 670 x 540 x 1060 mm |
| Unit Package Weight | 121 kg |
| Warranty | 1 year |
