Norsat International Inc.
Norsat Standard C-Band BPF-C-4 Filter
Product Code:
BPF-C-4
Condition:
New
Availability:
YES
Weight:
0.75 KGS
Width:
12.00
(cm)
Height:
10.00
(cm)
Depth:
7.00
(cm)
$532.00
Norsat’s band pass filters reject terrestrial interference in C-Band and can be easily installed between the feed and an LNB. It is suitable for use with Norsat’s existing C-Band LNBs and is environmentally sealed and moisture resistant (IP66). BPF / BPF-C Series.
| KEY SPECIFICATIONS | |
| Band | C-Band |

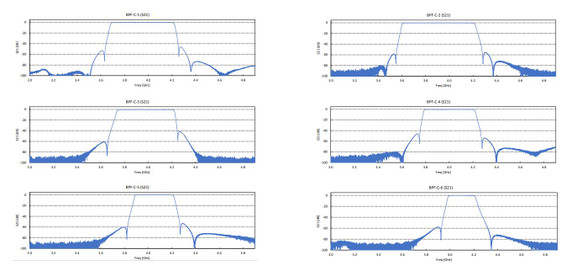

| Input Frequency Band 1 | C-Band: 3.80 - 4.20 GHz |
| RF SPECIFICATIONS | |
| Output VSWR | 1.4 : 1 |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | CPR 229G waveguide grooved |
| RF Output Connector | CPR-229F |
| PHYSICAL SPECIFICATIONS | |

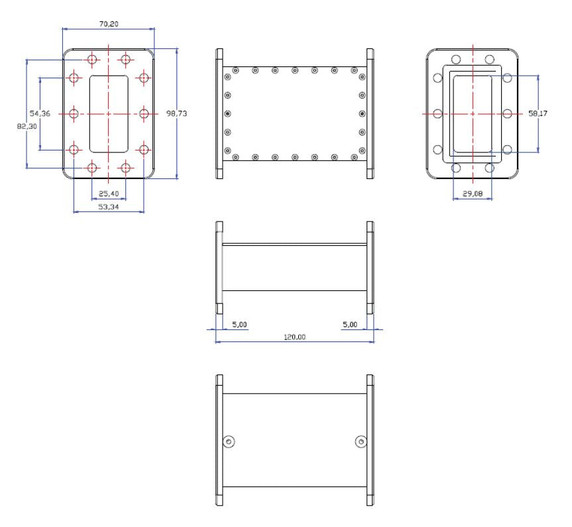

| Dimensions (LxWxH) | 120 x 100 x 70 mm |
5 customers are viewing this product
Details
Norsat’s band pass filters reject terrestrial interference in C-Band and can be easily installed between the feed and an LNB. It is suitable for use with Norsat’s existing C-Band LNBs and is environmentally sealed and moisture resistant (IP66). BPF / BPF-C Series.
| KEY SPECIFICATIONS | |
| Band | C-Band |
| Input Frequency Band 1 | C-Band: 3.80 - 4.20 GHz |
| RF SPECIFICATIONS | |
| Output VSWR | 1.4 : 1 |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | CPR 229G waveguide grooved |
| RF Output Connector | CPR-229F |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (LxWxH) | 120 x 100 x 70 mm |
Download
| Download Name | |
| Norsat Standard C-Band BPF-C-1 Datasheet | |
