Norsat International Inc.
Norsat BPF-C-2 C-Band 5G Rejection Bandpass Filter
Product Code:
BPF-C-2
Condition:
New
Availability:
73 pcs
Weight:
0.65 KGS
Width:
10.00
(cm)
Height:
7.00
(cm)
Depth:
12.00
(cm)
$532.00
Norsat’s band pass filters reject terrestrial interference in C-Band and can be easily installed between the feed and an LNB. It is suitable for use with Norsat’s existing C-Band LNBs and is environmentally sealed and moisture resistant (IP66). BPF / BPF-C Series.
| KEY SPECIFICATIONS | |
| Band | C-Band |
| Group Delay Variation Within 0.5Mhz | 0.6 nsec |

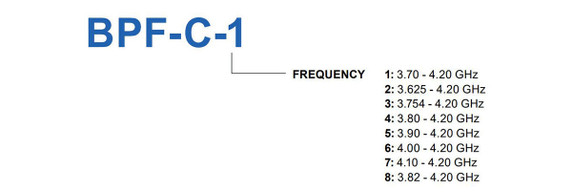

| Input Frequency Band 1 | 3.625 - 4.20 GHz |

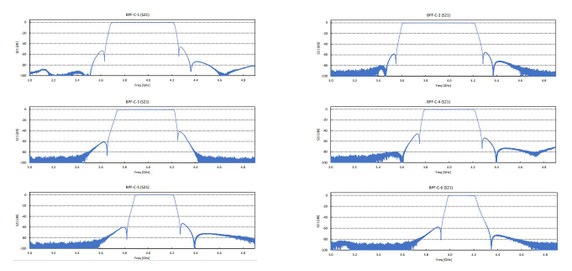

| Rejection | 25 dB min at 3.575 GHz and 4.250 GHz; 60 dB min at 3.475 GHz and 4.350 GHz; 70 dB min at 3.425 GHz and 4.400 GHz |
| RF SPECIFICATIONS | |
| VSWR | 1.4 : 1 max. |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | CPR 229G waveguide grooved |
| RF Output Connector | CPR-229F |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |

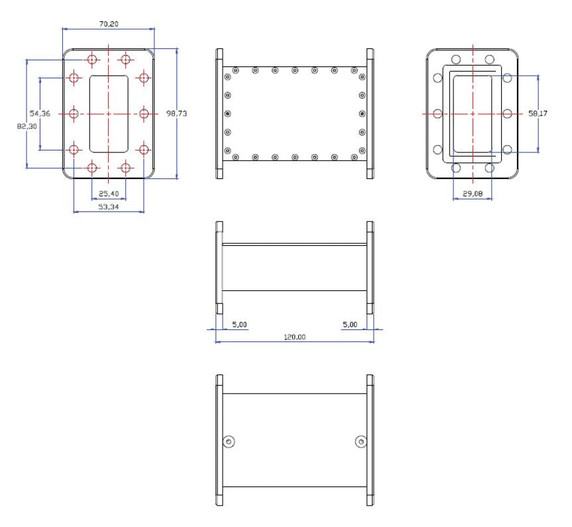

| PHYSICAL SPECIFICATIONS | |
| Product Height | 70 mm |
| Product Length | 120 mm |
| Product Weight | 0.65 kg |
| Product Width | 100 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.625 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 1.5625 |
| Country Of Origin | Made in Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 220 x 140 x 120 mm |
| Unit Package Height | 120 mm |
| Unit Package Length | 220 mm |
| Unit Package Weight | 1.02 kg |
| Unit Package Width | 140 mm |
| Warranty | 3 years |
5 customers are viewing this product
Details
Norsat’s band pass filters reject terrestrial interference in C-Band and can be easily installed between the feed and an LNB. It is suitable for use with Norsat’s existing C-Band LNBs and is environmentally sealed and moisture resistant (IP66). BPF / BPF-C Series.
| KEY SPECIFICATIONS | |
| Band | C-Band |
| Group Delay Variation Within 0.5Mhz | 0.6 nsec |
| Input Frequency Band 1 | 3.625 - 4.20 GHz |
| Rejection | 25 dB min at 3.575 GHz and 4.250 GHz; 60 dB min at 3.475 GHz and 4.350 GHz; 70 dB min at 3.425 GHz and 4.400 GHz |
| RF SPECIFICATIONS | |
| VSWR | 1.4 : 1 max. |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | CPR 229G waveguide grooved |
| RF Output Connector | CPR-229F |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 70 mm |
| Product Length | 120 mm |
| Product Weight | 0.65 kg |
| Product Width | 100 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.625 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 1.5625 |
| Country Of Origin | Made in Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 220 x 140 x 120 mm |
| Unit Package Height | 120 mm |
| Unit Package Length | 220 mm |
| Unit Package Weight | 1.02 kg |
| Unit Package Width | 140 mm |
| Warranty | 3 years |
Download
| Download Name | |
| Norsat Standard C-Band BPF-C-1 Datasheet | |
