Norsat International Inc.

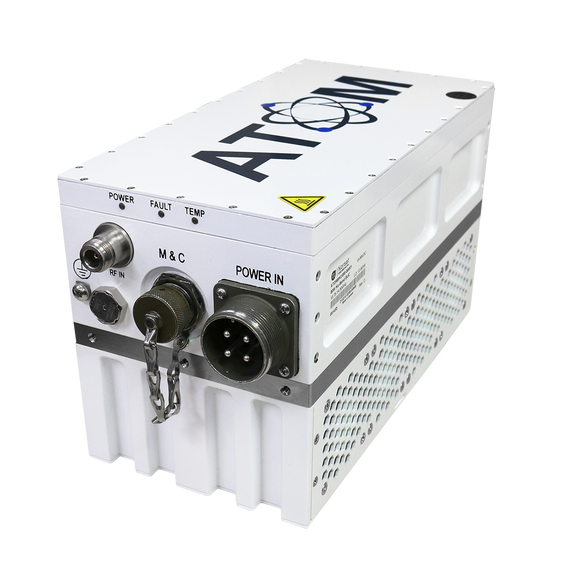

Norsat SSPA-ATOMKU100-37712 SSPA-ATOMKU100-37712 - DEMO
Product Code:
SSPA-ATOMKU100-37712
Condition:
New
Availability:
1 pcs
Weight:
5.50 KGS
$19,860.00
Ku-Band SSPA 100W; Wide Band 14.6-15.225GHZ, SMA IN, SMA RTANG OUT, WHITE; INT AC PSU
| RF SPECIFICATIONS | |
| Fwd Monitor Range | ±1.0 dB |
| Gain Min | 50 dB |
| Gain Variation Over Time | 6 dB max p-p |
| Input VSWR | 1.5:1 |
| Noise Figure In Band | 18 dB |
| Output P1db Typ | 100 W |
| Output Psat | 120 W |
| Output VSWR | 1.4:1 |
| Spurious | -60 dBc |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption Plin | 240 W |
| Power Consumption Psat | 275 W |
| Power Supply | 48 V |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 100% condensing |
| Temperature Operational | -40 to +60 °C |
| Temperature Storage | -55 to +85 °C |
| PHYSICAL SPECIFICATIONS | |
| Product Dimensions (With Fan) (Lxwxh) | 320 x 220 x 150 mm |
| Product Weight | 5.5 kg |
| Product Weight Without Fan | 4.5 kg |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 1 year |
