Norsat International Inc.

Norsat SPARES-100064 ACU for MLINK-100463

Name: Norsat SPARES-100064 ACU for MLINK-100463
Brand: Norsat International Inc.
SKU: SPARES-100064
Availability: OutOfStock

No reviews yet

Product Code: SPARES-100064

Condition: New

Availability: 10 - 12 Weeks

Weight: 4.00 KGS

Width: 32.00 (cm)

Height: 4.40 (cm)

Depth: 48.00 (cm)

Request a quote at Contact@orbitalconnect.com or +1.888.218.9394

INTERFACE SPECIFICATIONS
Connector	Rx In: N-Connector Rx Out: F-Connector Tx In: F-Connector Tx Out: N-Connector
PHYSICAL SPECIFICATIONS

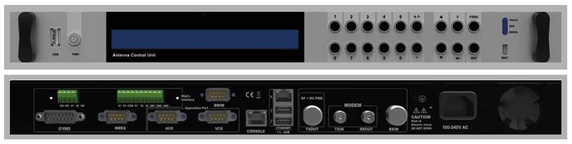

Back Panel	Gyro: Ship’s gyro input (15 Pins D-Sub Connector) port, can accept the GPS data and heading angle when using the GPS compass I/O & gyro strip connector (Terminal strip connector) R1, R2, COM, S1, S2, S3: Input the ship’s gyro signal (synchro, step by step type) SW1, SW2: Contact closure function for TX control TX is mute: SW1 and SW2 are open TX is not mute (Normal): SW1 and SW2 are short NMEA strip connector: NMEA type gyro input (RX+, RX-) NMEA (9 Pins D-sub connector): input GPS data when connect with external GPS BMIM (BUC Modem Interface Module) (9 Pins D-sub connector): supports RS-422, interfaces with iDirect X7 modems using OpenBMIP VCS (9 Pins D-sub connector): send protocol to VCS for dual antenna system AUX (9 Pins D-sub connector): not used, reserved port Console: GPS data output 0V output when TX is not mute (Normal), 5V output when TX is mute Receive the external lock state & external AGC value from mode Ethernet: Monitoring and setting using the Ethernet on remote site, receive the ABS protocol (Open AMIP, ROAM, STM VACP) USB Port AC Power: Input the AC 100~240V 50/60Hz Fan
Front Panel	USB Port Power Switch LCD Button: Numerical Key, Cursor LED: Track, GPS,Eerror Mini USB Port: For M&C Rx/Tx conenctors
Product Height	44 mm
Product Length	480 mm
Product Weight	4.0 kg
Product Width	320 mm
ADDITIONAL INFORMATION
Country Of Origin	Made in Korea
ECCN Number	5A991.G
Ex Works	Richmond, BC, Canada
Harmonized System Code	8517700000
Warranty	1 year
