Norsat International Inc.
Norsat SPARES-100063 Antenna Control Unit (ACU) for MLINK-100465, MLINK-100468, MLINK-100469 Antenna
Product Code:
SPARES-100063
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
Width:
48.30
(cm)
Height:
4.40
(cm)
Depth:
35.70
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Gyro Interface | Internally integrated Inertial Navigation System (INS) via RS-232 ACU can be configured with a communication interface for an external shipborne gyro. |
| ELECTRICAL SPECIFICATIONS | |
| Input Power | 100 - 240 VAC, 47 - 63 Hz |
| INTERFACE SPECIFICATIONS | |
| M And C Interface | RS-422 or Ethernet (RJ-45) |
| PHYSICAL SPECIFICATIONS | |
| Front Panel | Power Switch Status Indicator Display Screen Operating Keyboard |
| Product Height | 44 mm |
| Product Length | 357 mm |
| Product Width | 483 mm |

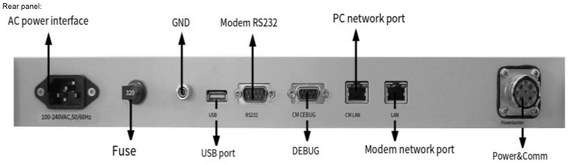

| Rear Panel | 220V AC Power Interface Ground USB Port Modem RS-232 Debug PC Network Port Modem Network Port Power and Communication |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Gyro Interface | Internally integrated Inertial Navigation System (INS) via RS-232 ACU can be configured with a communication interface for an external shipborne gyro. |
| ELECTRICAL SPECIFICATIONS | |
| Input Power | 100 - 240 VAC, 47 - 63 Hz |
| INTERFACE SPECIFICATIONS | |
| M And C Interface | RS-422 or Ethernet (RJ-45) |
| PHYSICAL SPECIFICATIONS | |
| Front Panel | Power Switch Status Indicator Display Screen Operating Keyboard |
| Product Height | 44 mm |
| Product Length | 357 mm |
| Product Width | 483 mm |
| Rear Panel | 220V AC Power Interface Ground USB Port Modem RS-232 Debug PC Network Port Modem Network Port Power and Communication |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
