Norsat International Inc.

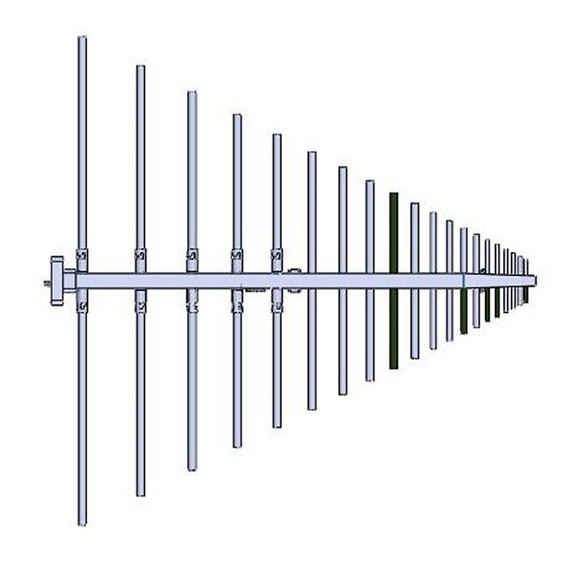

Norsat SLPKA001 0.03 - 3.0 GHz Logarithmic Periodic Antenna
Product Code:
SLPKA001
Condition:
New
Availability:
10 - 12 Weeks
Weight:
5.50 KGS
Width:
150.00
(cm)
Height:
100.00
(cm)
Depth:
150.00
(cm)
$23,681.00
| KEY SPECIFICATIONS | |
| Antenna Category | Manual Flyaway |
| Band | Ka-Band |
| Number Of Onboard Los | Single-Band |
| ANTENNA SPECIFICATIONS | |
| Polarization | Linear |
| RF SPECIFICATIONS | |
| Port Isolation Rx-Tx | ≥85dB |
| Port Isolation Tx-Rx | ≥40dB |
| Power Capacity | ?1000 W |
| Rx Frequency | 30 - 3000 MHz |
| Rx Gain | 6dBi |
| Rx Interface | N-50K |
| Rx VSWR | ≤ 2.5 : 1 |
| Tx Frequency | 30 - 3000 MHz |
| Tx Interface | N-50K |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 95%（20°C） |
| IP Rating | IP65 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -55℃ to +70℃ |
| Windspeed Operational | 13m/s |
| Windspeed Survival | 20m/s |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 1000 mm |
| Product Length | 1500 mm |
| Product Weight | 5.5 kg |
| Product Width | 1500 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Harmonized System Code | 8529109090 |
| Unit Package Dimensions | 1150 x 660 x 430 mm |
| Warranty | 1 year |
