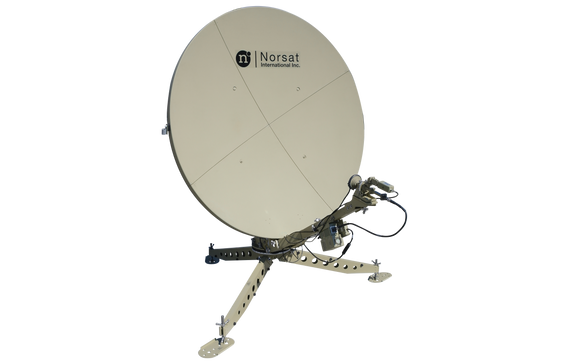

Norsat SL180KU SigmaLink 1.8m Ku-Band Auto-Acquire Flyaway Antenna

Name: Norsat SL180KU SigmaLink 1.8m Ku-Band Auto-Acquire Flyaway Antenna
Brand: Norsat International Inc.
SKU: SL180KU
Availability: OutOfStock

No reviews yet

Product Code: SL180KU

Condition: New

Availability: YES

Weight: 388.00 KGS

Width: 486.00 (cm)

Height: 559.00 (cm)

Depth: 583.00 (cm)

Norsat SL180KU SigmaLink 1.8m Ku-Band Auto-Acquire Flyaway Antenna Data Sheet

Request a quote at Contact@orbitalconnect.com or +1.888.315.9545

The new Norsat SigmaLink™ AUTO is the latest in a series of transportable satellite terminals. The SigmaLink™ is ideally suited to provide broadband connectivity for base camps or other prolonged missions where assignments are temporary but deployment is protracted. With simple setup and automatic acquisition, personnel with minimal training can have the SigmaLink™ AUTO up and transmitting in minutes.

KEY SPECIFICATIONS
Product Family	SIGMALINK
Band	Ku-Band
Reflector Diameter	1.8 m
Acquisition & Tracking	Automatic
Transmit Frequency	Ku-Band: 13.75 - 14.50 GHz
Receive Frequency	Ku-Band: 10.95 - 12.75 GHz

ANTENNA SPECIFICATIONS
Polarization	+/- 90°
Feed Configuration	2-port circular
Cross-Polarization Isolation	-85 dB (Tx - Rx); -30 dB (Rx - Tx)
Axial Ratio	n/a
Elevation Range	5° - 90°
Azimuth Range	+/- 35° fine adjust
Primary Antenna Power	115 / 230 VAC (50 / 60 Hz)
Standard BUC Options	20W, 40W, 80W

RF SPECIFICATIONS
G/T	23.7 dB/K (Rx)
EIRP	58.3 dBW (Tx)
Midband Gain	46.8 dBi (TX); 45.1 dBi (RX)
Tx Gain	50 dBi
Rx Gain	65 dBm
Output Power( P1dB)	7 dBm
Spectral Regrowth	-26 dBc @ 44 dBm
Reference Signal Frequency	0 +/- 5 dBm @ 10 MHz
Phase Noise @ 1KHz offset	-65 dBc/Hz
Phase Noise @ 10KHz offset	-75 dBc/Hz
Phase Noise @ 100KHz offset	-85 dBc/Hz
Input VSWR	2.2 : 1
Output VSWR	2.2 : 1

ELECTRICAL SPECIFICATIONS
Power Requirements	48 V / 24 V; <500 VAAC
Current Drain	200 mA

INTERFACE SPECIFICATIONS
Interfacility Link Cable	10 m (Standard); 30 m (Optional)

ENVIRONMENTAL SPECIFICATIONS
Temperature - Operational	-30°C to +50°C (Antenna/RF) ; 0 to 50°C (Indoor Equipment)
Rainfall - Operational	50 mm/h
Rainfall - Survival	100 mm/h
Windspeed - Operational	72 mm/h
Windspeed - Survival	108 mm/h
Humidity	0 - 100% condensing (Antenna / RF); 5 - 95% non-condensing (Indoor Equipment)
