Norsat International Inc.

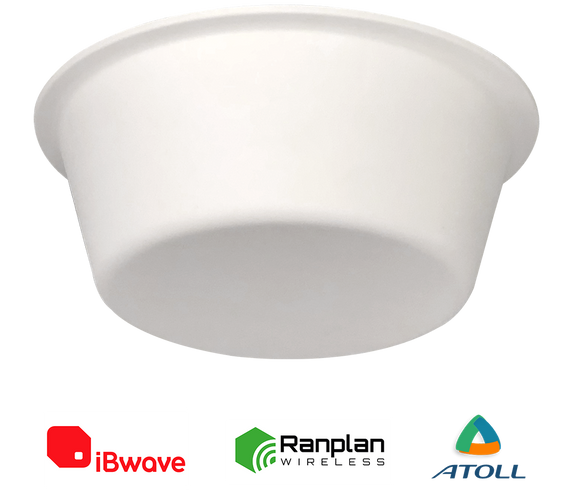

Norsat SI400-OWBL4F In-building antenna, omni, low PIM, 694-6000 MHz
Product Code:
SI400-OWBL4F
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
$480.00
• Low profile non-protruding form factor that lends into the environment easily
• Low PIM and ground plane independent design
• Fully compliant with the NFPA building safety code specifications
• Rugged build well suited for public safety applications that features UV-resistant radome and IP66 rating
• Proud Partner of the iBwave Component Database
| ANTENNA SPECIFICATIONS | |
| Antenna Pattern | Omni Directional |
| ELECTRICAL SPECIFICATIONS | |
| Band Cat | 960 - 6000 MHz (multi-band) |
| Connectors | 4.3-10(f) |
| Frequency Range (Mhz) | 694 - 6000 |
| VSWR Typ | 1.8 : 1 |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 66 |
| Temperature Range (°C) | -40 to +60 |
| PHYSICAL SPECIFICATIONS | |
| Diameter (In) | 9.06 |
| Length/Height (In) | 3.72 |
| Thickness (In) | - |
| Weight (Lbs) | 1.2 |
| Width (In) | - |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Aurora, Ontario, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 12 in x 12 in x 10 in |
| Unit Package Height | 10 in |
| Unit Package Length | 12 in |
| Unit Package Weight | 2.5 lbs |
| Unit Package Width | 12 in |
| Warranty | 2 years |
