Norsat International Inc.

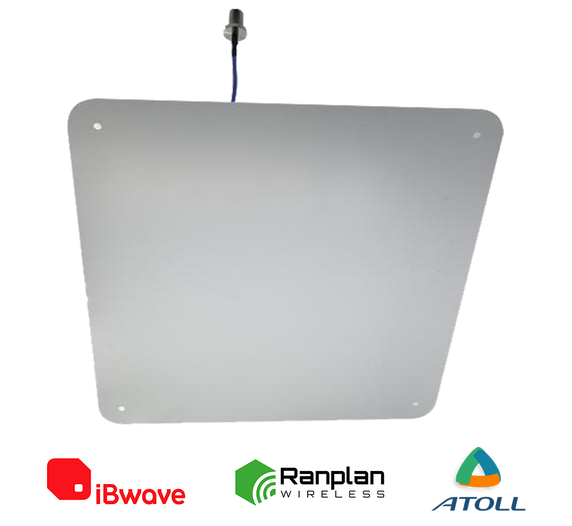

Norsat SI240F-OWBL4F In-building antenna, omni, wide band, low profile, low PIM, 132-960 MHz
Product Code:
SI240F-OWBL4F
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
$442.50
• Ultra low profile non-protruding form factor that blends into any environment easily
• Patent-pending design
• One antenna covering all public safety bands, Incl. VHF, UHF, 700/800/900 MHz
• Public safety grade, compliant with the industry in-building fire regulations
| ELECTRICAL SPECIFICATIONS | |
| Average Power Input Max (W) | 6 |
| Bandwidth (F1) (Mhz) | 42 |
| Bandwidth (F2) (Mhz) | 170 |
| Bandwidth (F3) (Mhz) | 262 |
| Connectors | 4.3-10(f) |
| Frequency Range (Mhz) | 350 - 520 |
| Frequency Range 2 (F2) (Mhz) | 350 to 520 |
| Frequency Range 3 (F3) (Mhz) | 698 to 960 |
| Gain F1 (Typ) (Dbi) | -3 to -1 |
| Gain F2 (Typ) (Dbi) | 0 to 2 |
| Gain F3 (Typ) (Dbi) | 1 to 4 |
| Impedance (Ω) | 50 |
| Pattern | Omni-directional |
| PIM Rating (Dbc) | -153 |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 65 |
| Temperature Range (°C) | -40 to +60 |
| PHYSICAL SPECIFICATIONS | |
| Cable Length (Nominal) (In) | 20 |
| Color | White |
| Depth (In) | 16.7 |
| Diameter (In) | - |
| Length/Height (In) | 0.5 |
| Mounting Configurations | Through-hole universal mount |
| Mounting Hardware | Supplied |
| Radome Material | Fiberglass |
| Thickness (In) | 0.08 |
| Weight (Lbs) | 1 |
| Width (In) | 15.4 |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 Kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Aurora, Ontario, Canada |
| Harmonized System Code | 8517710000 |
| Unit Package Dimensions | 18.25 in x 18.25 in x 2.75 in |
| Unit Package Height | 2.75 in |
| Unit Package Length | 18.25 in |
| Unit Package Weight | 3.5 lbs |
| Unit Package Width | 18.25 in |
| Warranty | 2 years |
