Norsat International Inc.

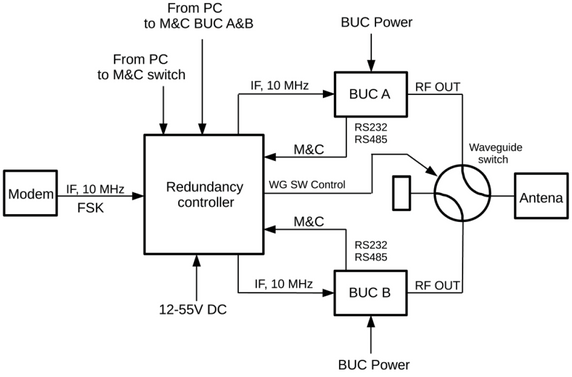

Norsat RSW-100281 BUC Redundant Switch System 1:1
Product Code:
RSW-100281
Condition:
New
Availability:
10 - 12 Weeks
Weight:
2.60 KGS
Width:
18.80
(cm)
Height:
5.65
(cm)
Depth:
21.40
(cm)
$0.00
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Redundancy | 1:1 |
| Switchover Time | Fault detection, 20 - 50 msec Total switchover, 100 msec max. |
| ELECTRICAL SPECIFICATIONS | |
| Power | Switch Drive: +12 to +24 VDC Redundant Switch Controller Box: +12 to +55 VDC |
| INTERFACE SPECIFICATIONS | |
| Alarm | Closure to ground, (ground = fault / open = OK) |
| Connector | N-Connector |
| M And C Interface | RS-485, RS-232, RS-422, Ethernet |
| Mode | Manual / Auto |
| Status LED | GREEN: Indicate Switch Position RED: Indicate Active Alarms |
| Waveguide | WR-75 |
| PHYSICAL SPECIFICATIONS | |
| Enclosed Accessories | Includes: Controller Box, Waveguide Redundancy Switch, Waveguide Termination, Waveguide Elbows, 6 feet Flexible Waveguide, Mounting Plate, Various Cabling and Transit Case |
| Packaging | Transit Case Weight: 11.82 kg Estimated Transit Case Dimensions (L x W x H): 79 x 78 x 33 cm Estimated |
| Product Height | 56.5 mm |
| Product Length | 214 mm |
| Product Weight | 2.6 kg |
| Product Width | 188 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in United States of America |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517700000 |
| Warranty | 1 year |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Redundancy | 1:1 |
| Switchover Time | Fault detection, 20 - 50 msec Total switchover, 100 msec max. |
| ELECTRICAL SPECIFICATIONS | |
| Power | Switch Drive: +12 to +24 VDC Redundant Switch Controller Box: +12 to +55 VDC |
| INTERFACE SPECIFICATIONS | |
| Alarm | Closure to ground, (ground = fault / open = OK) |
| Connector | N-Connector |
| M And C Interface | RS-485, RS-232, RS-422, Ethernet |
| Mode | Manual / Auto |
| Status LED | GREEN: Indicate Switch Position RED: Indicate Active Alarms |
| Waveguide | WR-75 |
| PHYSICAL SPECIFICATIONS | |
| Enclosed Accessories | Includes: Controller Box, Waveguide Redundancy Switch, Waveguide Termination, Waveguide Elbows, 6 feet Flexible Waveguide, Mounting Plate, Various Cabling and Transit Case |
| Packaging | Transit Case Weight: 11.82 kg Estimated Transit Case Dimensions (L x W x H): 79 x 78 x 33 cm Estimated |
| Product Height | 56.5 mm |
| Product Length | 214 mm |
| Product Weight | 2.6 kg |
| Product Width | 188 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in United States of America |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517700000 |
| Warranty | 1 year |
