Norsat International Inc.

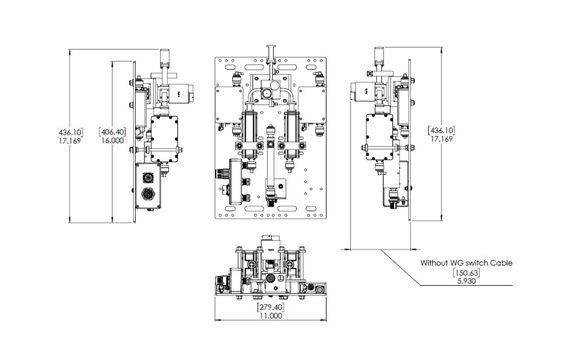

Norsat RSW-100261 LNB Redundant Switch System Single-Band 1:1 (Copy)
Product Code:
RSW-100261
Condition:
New
Availability:
10 - 12 Weeks
Weight:
9.00 KGS
Width:
15.90
(cm)
Height:
29.50
(cm)
Depth:
48.30
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Redundancy | 1:1 |
| Switchover Time | 120 ms max. |
| RF SPECIFICATIONS | |
| Input VSWR | LNB Dependent |
| Insertion Loss | 0.5 dB max. |
| ELECTRICAL SPECIFICATIONS | |
| Power | 90 - 264 VAC (47 - 63 Hz) |
| INTERFACE SPECIFICATIONS | |
| Component | LNB, External Ref, Single Band |
| INTERFACE SPECIFICATIONS | |
| IFL Cable Length | 30m |
| RF Input Connector | Ku-Band: WR-75 |
| RF Output Connector | N-Connector |
| Tx Rx Configuration | Rx Only |
| ENVIRONMENTAL SPECIFICATIONS | |
| Relative Humidity | < 100% |
| Temperature Operational | -40 to +60˚C |
| PHYSICAL SPECIFICATIONS | |
| Packaging | 26 x 23 x 27 in (661 x 584 x 686 mm) |
| Product Height | 295 mm |
| Product Length | 483 mm |
| Product Weight | 9 kg |
| Product Width | 159 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 660 mm x 610 mm x 736 mm |
| Unit Package Height | 736 mm |
| Unit Package Length | 660 mm |
| Unit Package Weight | 54.8 kg |
| Unit Package Width | 610 mm |
| Warranty | 3 years |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Redundancy | 1:1 |
| Switchover Time | 120 ms max. |
| RF SPECIFICATIONS | |
| Input VSWR | LNB Dependent |
| Insertion Loss | 0.5 dB max. |
| ELECTRICAL SPECIFICATIONS | |
| Power | 90 - 264 VAC (47 - 63 Hz) |
| INTERFACE SPECIFICATIONS | |
| Component | LNB, External Ref, Single Band |
| INTERFACE SPECIFICATIONS | |
| IFL Cable Length | 30m |
| RF Input Connector | Ku-Band: WR-75 |
| RF Output Connector | N-Connector |
| Tx Rx Configuration | Rx Only |
| ENVIRONMENTAL SPECIFICATIONS | |
| Relative Humidity | < 100% |
| Temperature Operational | -40 to +60˚C |
| PHYSICAL SPECIFICATIONS | |
| Packaging | 26 x 23 x 27 in (661 x 584 x 686 mm) |
| Product Height | 295 mm |
| Product Length | 483 mm |
| Product Weight | 9 kg |
| Product Width | 159 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 660 mm x 610 mm x 736 mm |
| Unit Package Height | 736 mm |
| Unit Package Length | 660 mm |
| Unit Package Weight | 54.8 kg |
| Unit Package Width | 610 mm |
| Warranty | 3 years |
