Norsat International Inc.

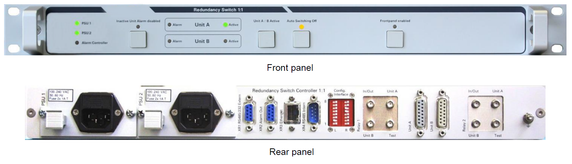

Norsat RSW-100191 Up/Down Converter Redundant Switch System 1:1

Name: Norsat RSW-100191 Up/Down Converter Redundant Switch System 1:1
Brand: Norsat International Inc.
SKU: RSW-100191
Availability: OutOfStock

No reviews yet

Product Code: RSW-100191

Condition: New

Availability: 10 - 12 Weeks

Weight: 0.00 KGS

Width: 48.30 (cm)

Height: 4.40 (cm)

Depth: 27.00 (cm)

Request a quote at Contact@orbitalconnect.com or +1.888.218.9394

KEY SPECIFICATIONS
Frequency Band	Up to L-Band: 0 - 1 GHz L/S-Band: 1 - 4 GHz C-Band: 4 - 8 GHz X-band: 8 - 12.4 GHz Ku-Band: 12.4 - 18 GHz
Switch Type	Latching (remains in position without voltage)
Switching	Manual or Automatic
RF SPECIFICATIONS
Switch Insertion Loss	Up to L-Band: 0.2 dB max. L/S-Band: 0.2 dB max. C-Band: 0.3 dB max. X-band: 0.4 dB max. Ku-Band: 0.6 dB max.
Switch Isolation	Up to L-Band: 85 dB min. L/S-Band: 80 dB min. C-Band: 70 dB min. X-band: 65 dB min. Ku-Band: 60 dB min.
Switch VSWR	Up to L-Band: 1.1 : 1 max. L/S-Band: 1.15 : 1 max. C-Band: 1.25 : 1 max. X-band: 1.35 : 1 max. Ku-Band: 1.6 : 1 max.
ELECTRICAL SPECIFICATIONS
Fuse	2 x 2 x 2.0 A, time-lag fuse
Power Consumption	25 VA max. / 7 W max.
Power Requirements	2 x 100 - 240 VAC nom., 90 - 264 VAC max., 50 - 60 Hz, Redundant Power Supply, Hot swap
Switch Power Handling	1 W (switching)
INTERFACE SPECIFICATIONS
Alarm	Two potential free contacts (DPDT), connector DSUB09 female
Alarm Interface To Units	2 Interfaces to sense contact closure or alarm signal at alarm output of unit or additional unit, connectors DSUB15 female
Configuration	16 DIP switches on rear side / serial interface
Controller Internal Delay	From unit alarm occurrence until IF/RF switch has switched: Typical 28 ms, max. 35 ms (Signal outage can be longer due to synchronization time of the spare unit, e.g. Modulator.)
Internal M And C Interface	RS485, connector DSUB09 male
M&C Interface	Protocol: SNMP Connection: UDP over Ethernet (10 or 100 Mbps, auto sensing), connector RJ-45 Protocol: HTTP (web browser interface) Connection: TCP/IP over Ethernet (10 or 100 Mbps, auto sensing), connector RJ-45 Protocol: Multipoint packet format commands Connection: RS232 or RS422/RS485 (configurable), connector DSUB09 female or TCP/IP over Ethernet (10 or 100 Mbps, auto sensing), connector RJ-45
Power Connector	2 x IEC C14
Switch Connector	SMA-Connector (50 Ω)
User Interface	10 LEDs, 4 Function Keys
ENVIRONMENTAL SPECIFICATIONS
Relative Humidity	< 95 % non condensing
Temperature Operational	0°C to +50°C
Temperature Storage	-30°C to +80°C
PHYSICAL SPECIFICATIONS
Product Height	44 mm
Product Length	270 mm
Product Weight	Approx. 3 kg
Product Width	483 mm
Switch Panel Weight And Dimensions	483 x 88 + connectors x 96 mm³ (WxHxD), 2 RU 19” + IF/RF connectors, approx. 1 kg
ADDITIONAL INFORMATION
Country Of Origin	Made in Germany
ECCN Number	EAR99
Ex Works	Richmond, BC, Canada
Harmonized System Code	8517690000
