Norsat International Inc.

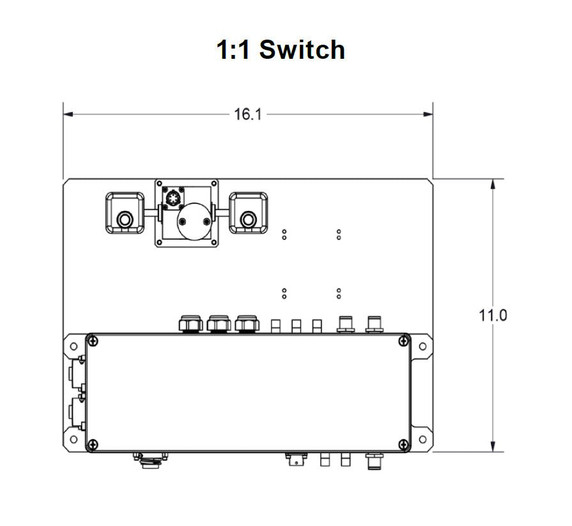

Norsat RSW-100141 LNB Redundant Switch System 1:1

Name: Norsat RSW-100141 LNB Redundant Switch System 1:1
Brand: Norsat International Inc.
SKU: RSW-100141
Availability: OutOfStock

No reviews yet

Product Code: RSW-100141

Condition: New

Availability: 1 pcs

Weight: 5.40 KGS

Width: 30.48 (cm)

Height: 12.73 (cm)

Depth: 41.28 (cm)

Request a quote at Contact@orbitalconnect.com or +1.888.218.9394

*Mating power connector is available as a standard optional.

Supported LNBs: N-conn LNBs up to Quad-band and non simultaneous-band. Sold separately.

KEY SPECIFICATIONS
Band	Ku-Band
Input Frequency Band 1	950 - 2150 MHz
Redundancy	1:1
Switchover Time	420 ms max.
RF SPECIFICATIONS
Insertion Loss	Waveguide to LNB: 0.5 dB max.; LNB to Cable: 2.8 dB max.
ELECTRICAL SPECIFICATIONS
Power	100-240 VAC (50-60 Hz)
INTERFACE SPECIFICATIONS
Input Connector	WR-75
RF Output Connector	N-Connector
ENVIRONMENTAL SPECIFICATIONS
IP Rating	IP 66
Relative Humidity	Operational: 8% - 100%; Storage: 10% - 100%
Temperature Operational	-40 to +60˚C
Temperature Storage	-50 to +80˚C
PHYSICAL SPECIFICATIONS
Product Height	127.25 mm
Product Length	412.75 mm
Product Weight	5.4 kg
Product Width	304.80 mm
ADDITIONAL INFORMATION
Country Of Origin	Made in Canada
ECCN Number	EAR99
Ex Works	Richmond, BC, Canada
Harmonized System Code	8517690000
Unit Package Dimensions	501.65 x 393.70 x 311.15 mm
Unit Package Dimensions ODU	502 x 394 x 311 mm
Unit Package Height	311.15 mm
Unit Package Length	501.65 mm
Unit Package Weight	8.16 kg
Unit Package Width	393.70 mm
Warranty	3 years
