Norsat International Inc.

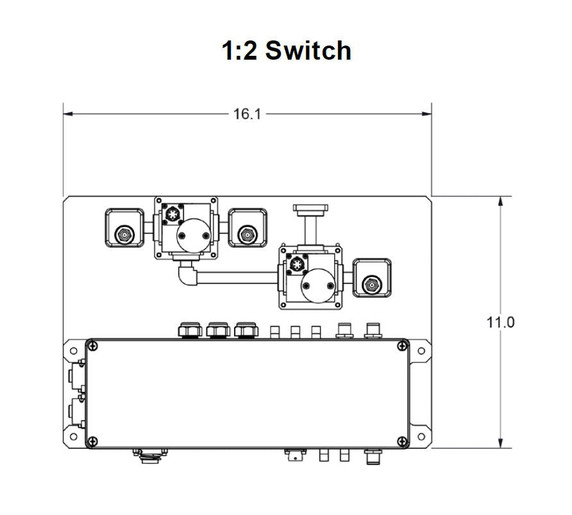

Norsat RSLNBX12FRP Redundant Switch 1:2 LNB, X-band
Product Code:
RSLNBX12FRP
Condition:
New
Availability:
YES
Weight:
6.80 KGS
Width:
50.20
(cm)
Height:
31.10
(cm)
Depth:
39.40
(cm)
$22,280.00
APPLICATIONS
Norsat’s Redundant LNB Switch System features a slim, streamline outdoor unit mounted on a plate for easy installation. Automaticallydetect signal faults and switch to an alternate LNB - providingmaximum satellite service availability. Receive-side signal continuity is maintained via continuous power detection, and upon detecting a fault, signal is automatically switched to the reserve LNB.
Available for either 1:1 or 1:2 redundancy applications, Norsat LNB Redundant Switch solutions combine the reliability and performance of down conversion products with the ultimate system safeguarding solution for remote and challenging satellite terminal installations.
FEATURES
• C, Ku, Ka and X-band Systems Available
• Automatically detect LNB failure via DC current
• Fully automatic or manually-commanded redundancy
• M&C through Ethernet (SNMP, Web Interface)
• Custom requirement available
• Optional 1U-19” Indoor Unit
• Supporting Single-Band & Multi-Band LNB with Internal/External Reference
| KEY SPECIFICATIONS | |
|---|---|
| band | X-Band |
| product family | Redundant Switch |
| RF SPECIFICATIONS | |
|---|---|
| output VSWR | 1.5 Maximum |
| INTERFACE SPECIFICATIONS | |
|---|---|
| component type | LNB |
| redundancy | 1:2 |
| RF input connector | WR-229 |
| RF output connector | F-75 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| humidity | Operational: 8% - 100% | Storage: 10% - 100% |
| temperature operational | -40 to +60˚C |
| temperature storage | -50 to +80˚C |
| Waterproofing | IP66 (ODU) |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| dimensions (LxWxH) | 23.00 in x 17.00 in x 8.84 in |
| IDU Dimensions (LxWxH) | 19.00 in x 9.86 in x 1.72 in |
| IDU Weight | 3.45 lbs (1.6 kg) |
| Weight | 36 lbs (16.3 kg) |
ADDITIONAL INFORMATION
| HS Code | 8517620020 |
| Country of Origin | CA |
| ECCN Number | EAR99 |
| Shipping Package Dimensions | C-Band ODU: 19.75 in x 15.50 in x 12.25 in Ku/Ka/X-Band ODU: 26.50 in x 21.00 in x 12.25 in IDU: 20.75 in x 12.75 in x 7.00 in |
| Shipping Package Weight | ODU: 18 lbs IDU: 7 lbs |
