Norsat International Inc.

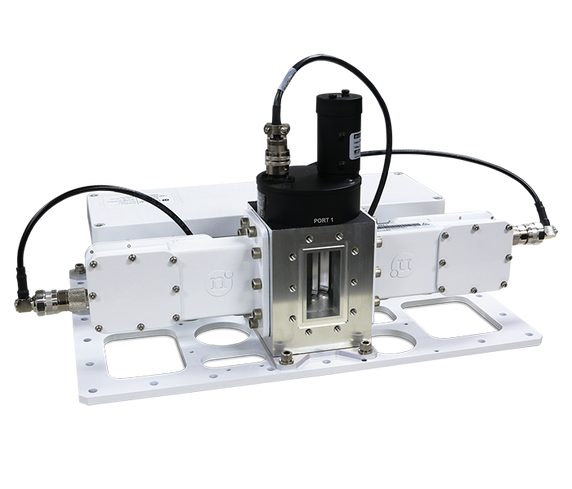

Norsat RSLNBKU12N LNB Redundant Switch
Product Code:
RSLNBKU12N
Condition:
New
Availability:
YES
Weight:
5.00 KGS
Width:
48.30
(cm)
Height:
31.10
(cm)
Depth:
25.70
(cm)
$22,000.00
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Product Family | Redundant Switch |
| RF SPECIFICATIONS | |
| Output VSWR | 1.1 Maximum |
| INTERFACE SPECIFICATIONS | |
| Component Type | LNB |
| Redundancy | 1:2 |
| RF Input Connector | WR-75 |
| RF Output Connector | N-50 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40 to +60˚C |
| Weight | 11 lbs (5 kg) max. (excluding installed devices) |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (LxWxH) | 483 x 311 x 257 mm |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Product Family | Redundant Switch |
| RF SPECIFICATIONS | |
| Output VSWR | 1.1 Maximum |
| INTERFACE SPECIFICATIONS | |
| Component Type | LNB |
| Redundancy | 1:2 |
| RF Input Connector | WR-75 |
| RF Output Connector | N-50 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40 to +60˚C |
| Weight | 11 lbs (5 kg) max. (excluding installed devices) |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (LxWxH) | 483 x 311 x 257 mm |
Download
| Download Name | |
| Norsat RSLNBKU12N LNB Redundant Switch Data Sheet | |
