Norsat International Inc.
Norsat RSLNBKU11NRP Redundant Switch 1:1 LNB, Ku-band

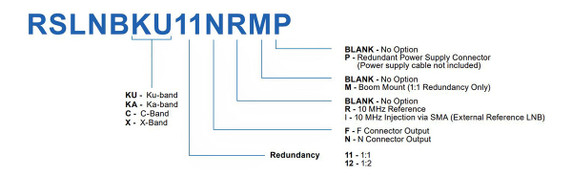

Product Code:
RSLNBKU11NRP
Condition:
New
Availability:
YES
Weight:
5.40 KGS
Width:
41.30
(cm)
Height:
12.70
(cm)
Depth:
30.50
(cm)
$14,200.00
APPLICATIONS

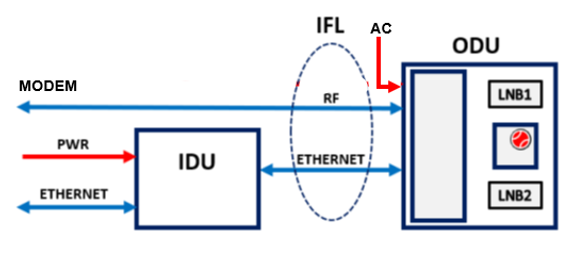

Norsat’s Redundant LNB Switch System features a slim, streamline outdoor unit mounted on a plate for easy installation. Automaticallydetect signal faults and switch to an alternate LNB - providingmaximum satellite service availability. Receive-side signal continuity is maintained via continuous power detection, and upon detecting a fault, signal is automatically switched to the reserve LNB.
Available for either 1:1 or 1:2 redundancy applications, Norsat LNB Redundant Switch solutions combine the reliability and performance of down conversion products with the ultimate system safeguarding solution for remote and challenging satellite terminal installations.
FEATURES
• C, Ku, Ka and X-band Systems Available
• Automatically detect LNB failure via DC current
• Fully automatic or manually-commanded redundancy
• M&C through Ethernet (SNMP, Web Interface)
• Custom requirement available
• Optional 1U-19” Indoor Unit
• Supporting Single-Band & Multi-Band LNB with Internal/External Reference
| KEY SPECIFICATIONS | |
|---|---|
| band | Ku-Band |
| product family | Redundant Switch |
| RF SPECIFICATIONS | |
|---|---|
| output VSWR | 1.5 Maximum |
| INTERFACE SPECIFICATIONS | |
|---|---|
| component type | LNB |
| redundancy | 1:1 |
| RF input connector | WR-75 |
| RF output connector | N-50 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| humidity | Operational: 8% - 100% | Storage: 10% - 100% |
| temperature operational | -40 to +60˚C |
| temperature storage | -50 to +80˚C |
| Waterproofing | IP66 (ODU) |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| dimensions (LxWxH) | 16.25 in x 12.00 in x 5.01 in |
| IDU Dimensions (LxWxH) | 19.00 in x 9.86 in x 1.72 in |
| IDU Weight | 3.45 lbs (1.6 kg) |
| Weight | 12 lbs (5.4 kg) |
5 customers are viewing this product
Details
APPLICATIONS
Norsat’s Redundant LNB Switch System features a slim, streamline outdoor unit mounted on a plate for easy installation. Automaticallydetect signal faults and switch to an alternate LNB - providingmaximum satellite service availability. Receive-side signal continuity is maintained via continuous power detection, and upon detecting a fault, signal is automatically switched to the reserve LNB.
Available for either 1:1 or 1:2 redundancy applications, Norsat LNB Redundant Switch solutions combine the reliability and performance of down conversion products with the ultimate system safeguarding solution for remote and challenging satellite terminal installations.
FEATURES
• C, Ku, Ka and X-band Systems Available
• Automatically detect LNB failure via DC current
• Fully automatic or manually-commanded redundancy
• M&C through Ethernet (SNMP, Web Interface)
• Custom requirement available
• Optional 1U-19” Indoor Unit
• Supporting Single-Band & Multi-Band LNB with Internal/External Reference
| KEY SPECIFICATIONS | |
|---|---|
| band | Ku-Band |
| product family | Redundant Switch |
| RF SPECIFICATIONS | |
|---|---|
| output VSWR | 1.5 Maximum |
| INTERFACE SPECIFICATIONS | |
|---|---|
| component type | LNB |
| redundancy | 1:1 |
| RF input connector | WR-75 |
| RF output connector | N-50 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| humidity | Operational: 8% - 100% | Storage: 10% - 100% |
| temperature operational | -40 to +60˚C |
| temperature storage | -50 to +80˚C |
| Waterproofing | IP66 (ODU) |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| dimensions (LxWxH) | 16.25 in x 12.00 in x 5.01 in |
| IDU Dimensions (LxWxH) | 19.00 in x 9.86 in x 1.72 in |
| IDU Weight | 3.45 lbs (1.6 kg) |
| Weight | 12 lbs (5.4 kg) |
Download
| Download Name | |
| LNB REDUNDANT SWITCH SYSTEM Data Sheet | |
| User Manual | |
