Norsat International Inc.
Norsat RSLNBKA11FM LNB Redundant Switch System 1:1
Product Code:

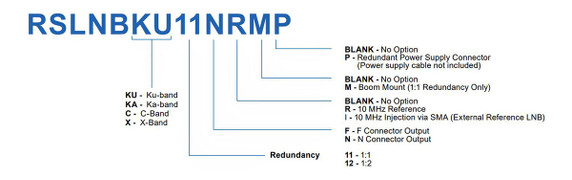

RSLNBKA11FM
Condition:
New
Availability:
4 pcs
Weight:
5.40 KGS
Width:
50.20
(cm)
Height:
31.10
(cm)
Depth:
39.40
(cm)
$13,550.00
*Mating power connector is available as a standard optional.
Supported LNBs: N-conn LNBs up to Quad-band and non simultaneous-band. Sold separately.
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| Input Frequency Band 1 | 950 - 2150 MHz |
| Redundancy | 1:1 |
| Switchover Time | 420 ms max. |
| RF SPECIFICATIONS | |
| Insertion Loss | Waveguide to LNB: 0.5 dB max.; LNB to Cable: 2.8 dB max. |
| ELECTRICAL SPECIFICATIONS | |
| Power | 100-240 VAC (50-60 Hz) |
| INTERFACE SPECIFICATIONS | |
| Input Connector | WR-42 |
| RF Output Connector | F-Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 66 |
| Relative Humidity | Operational: 8% - 100%; Storage: 10% - 100% |
| Temperature Operational | -40°C to +60°c |
| Temperature Storage | -50 to +80˚C |
| PHYSICAL SPECIFICATIONS | |
| Controller Box Height | 66.80 mm |
| Controller Box Length | 411.73 mm |
| Controller Box Weight | 3.4 kg |
| Controller Box Width | 163.83 mm |
| RF Switch Height | 106.93 mm |
| RF Switch Length | 158.87 mm |
| RF Switch Weight | 0.53 kg |
| RF Switch Width | 53.70 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 4.37 kg |
| Aluminium COO | CN |
| Aluminium Total Value | $ 10.925 |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 501.65 x 393.70 x 311.15 mm |
| Unit Package Dimensions ODU | 502 x 394 x 311 mm |
| Unit Package Height | 311.15 mm |
| Unit Package Length | 501.65 mm |
| Unit Package Weight | 8.16 kg |
| Unit Package Width | 393.70 mm |
| Warranty | 3 years |
5 customers are viewing this product
Details
*Mating power connector is available as a standard optional.
Supported LNBs: N-conn LNBs up to Quad-band and non simultaneous-band. Sold separately.
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| Input Frequency Band 1 | 950 - 2150 MHz |
| Redundancy | 1:1 |
| Switchover Time | 420 ms max. |
| RF SPECIFICATIONS | |
| Insertion Loss | Waveguide to LNB: 0.5 dB max.; LNB to Cable: 2.8 dB max. |
| ELECTRICAL SPECIFICATIONS | |
| Power | 100-240 VAC (50-60 Hz) |
| INTERFACE SPECIFICATIONS | |
| Input Connector | WR-42 |
| RF Output Connector | F-Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 66 |
| Relative Humidity | Operational: 8% - 100%; Storage: 10% - 100% |
| Temperature Operational | -40°C to +60°c |
| Temperature Storage | -50 to +80˚C |

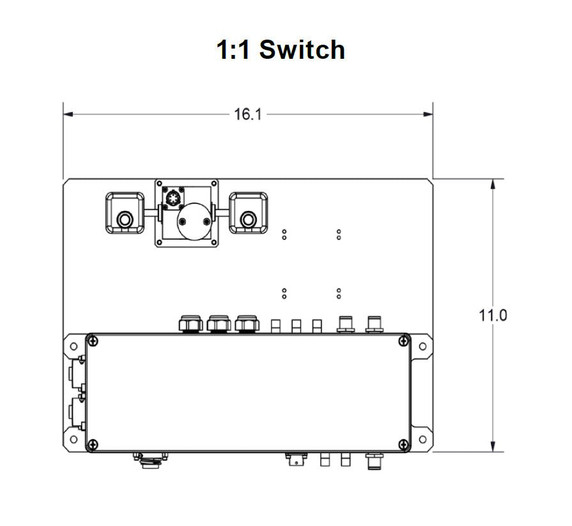

| PHYSICAL SPECIFICATIONS | |
| Controller Box Height | 66.80 mm |
| Controller Box Length | 411.73 mm |
| Controller Box Weight | 3.4 kg |
| Controller Box Width | 163.83 mm |
| RF Switch Height | 106.93 mm |
| RF Switch Length | 158.87 mm |
| RF Switch Weight | 0.53 kg |
| RF Switch Width | 53.70 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 4.37 kg |
| Aluminium COO | CN |
| Aluminium Total Value | $ 10.925 |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 501.65 x 393.70 x 311.15 mm |
| Unit Package Dimensions ODU | 502 x 394 x 311 mm |
| Unit Package Height | 311.15 mm |
| Unit Package Length | 501.65 mm |
| Unit Package Weight | 8.16 kg |
| Unit Package Width | 393.70 mm |
| Warranty | 3 years |
Download
| Download Name | |
| LNB REDUNDANT SWITCH SYSTEM Data Sheet | |
| User Manual | |
