Norsat International Inc.

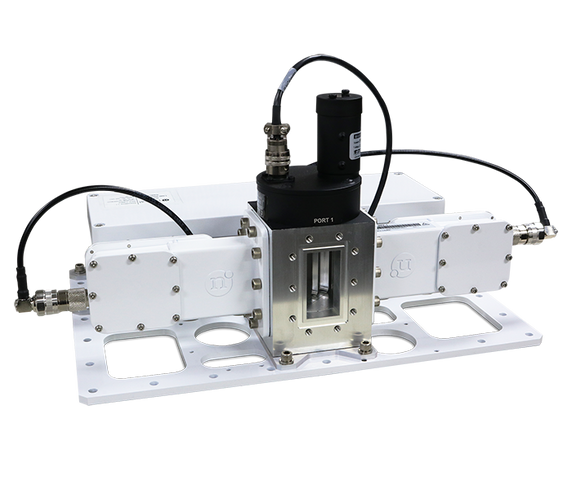

Norsat RSLNBKA11FI LNB Redundant Switch System 1:1
Product Code:
RSLNBKA11FI
Condition:
New
Availability:
10 - 12 Weeks
Weight:
5.40 KGS
Width:
30.48
(cm)
Height:
11.58
(cm)
Depth:
41.28
(cm)
$13,350.00
*Mating power connector is available as a standard optional.
Supported LNBs: N-conn LNBs up to Quad-band and non simultaneous-band. Sold separately.
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| Input Frequency Band 1 | 950 - 2150 MHz |
| Redundancy | 1:1 |
| Switchover Time | 420 ms max. |
| RF SPECIFICATIONS | |
| Insertion Loss | Waveguide to LNB: 0.5 dB max.; LNB to Cable: 2.8 dB max. |
| ELECTRICAL SPECIFICATIONS | |
| Power | 100-240 VAC (50-60 Hz) |
| INTERFACE SPECIFICATIONS | |
| Input Connector | WR-42 |
| RF Output Connector | F-Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 66 |
| Relative Humidity | Operational: 8% - 100%; Storage: 10% - 100% |
| Temperature Operational | -40°C to +60°c |
| Temperature Storage | -50 to +80˚C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 115.82 mm |
| Product Length | 412.75 mm |
| Product Weight | 5.4 kg |
| Product Width | 304.80 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 4.71 kg |
| Aluminium COO | CA |
| Aluminium Total Value | $ 11.775 |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 501.65 x 393.70 x 311.15 mm |
| Unit Package Dimensions ODU | 502 x 394 x 311 mm |
| Unit Package Height | 311.15 mm |
| Unit Package Length | 501.65 mm |
| Unit Package Weight | 8.16 kg |
| Unit Package Width | 393.70 mm |
| Warranty | 3 years |
