Norsat International Inc.

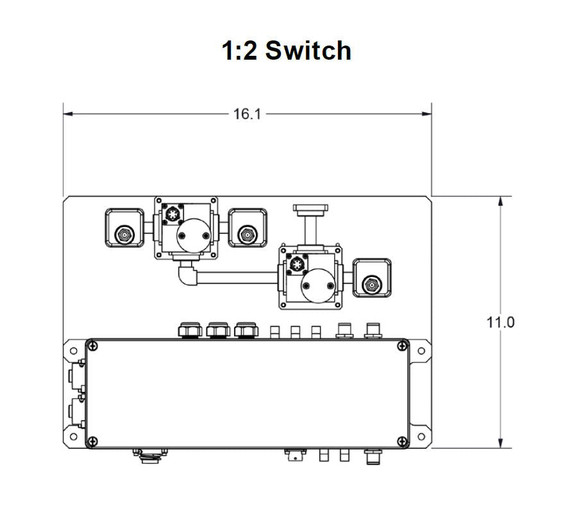

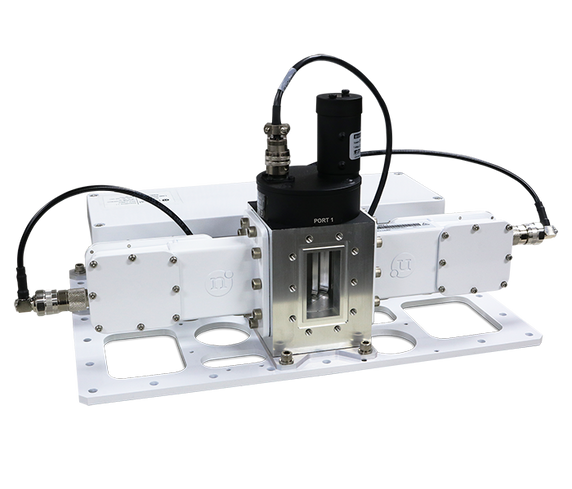

Norsat RSLNBC12FI LNB Redundant Switch System 1:2
Product Code:
RSLNBC12FI
Weight:
16.30 KGS
Width:
41.27
(cm)
Height:
12.72
(cm)
Depth:
30.48
(cm)
$21,430.00
| KEY SPECIFICATIONS | |
| band | C-Band |
| input frequency band 1 | 950 - 2150 MHz |
| redundancy | 1:02 |
| switchover time | 550 ms max. |
| Product Revision | A |
| RF SPECIFICATIONS | |
| insertion loss | Waveguide to LNB: 0.5 dB max.; LNB to Cable: 2.8 dB max. |
| ELECTRICAL SPECIFICATIONS | |
| power | 100-240 VAC (50-60 Hz) |
| INTERFACE SPECIFICATIONS | |
| input connector | WR-229 |
| RF output connector | F-Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP rating | IP 66 (ODU) |
| relative humidity | Operational: 8% - 100%; Storage: 10% - 100% |
| temperature operational | -40 to +60˚C |
| temperature storage | -50 to +80˚C |
| PHYSICAL SPECIFICATIONS | |
| IDU Dimensions (LxWxH) | 19.00 x 9.86 x 1.72 in |
| IDU packaging | 20.75 in x 12.75 in x 7.00 in (7 lbs) |
| IDU Weight | 1.6 kg |
| packaging | 26.50 in x 21.00 in x 12.25 in (38 lbs) |
| product dimensions (LxWxH) | 23.00 x 17.00 x 8.84 in |
| product weight | 16.3 kg |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| band | C-Band |
| input frequency band 1 | 950 - 2150 MHz |
| redundancy | 1:02 |
| switchover time | 550 ms max. |
| Product Revision | A |
| RF SPECIFICATIONS | |
| insertion loss | Waveguide to LNB: 0.5 dB max.; LNB to Cable: 2.8 dB max. |
| ELECTRICAL SPECIFICATIONS | |
| power | 100-240 VAC (50-60 Hz) |
| INTERFACE SPECIFICATIONS | |
| input connector | WR-229 |
| RF output connector | F-Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP rating | IP 66 (ODU) |
| relative humidity | Operational: 8% - 100%; Storage: 10% - 100% |
| temperature operational | -40 to +60˚C |
| temperature storage | -50 to +80˚C |
| PHYSICAL SPECIFICATIONS | |
| IDU Dimensions (LxWxH) | 19.00 x 9.86 x 1.72 in |
| IDU packaging | 20.75 in x 12.75 in x 7.00 in (7 lbs) |
| IDU Weight | 1.6 kg |
| packaging | 26.50 in x 21.00 in x 12.25 in (38 lbs) |
| product dimensions (LxWxH) | 23.00 x 17.00 x 8.84 in |
| product weight | 16.3 kg |
Download
| Download Name | |
| LNB Redundant Switch System 1:2 Data Sheet | |
