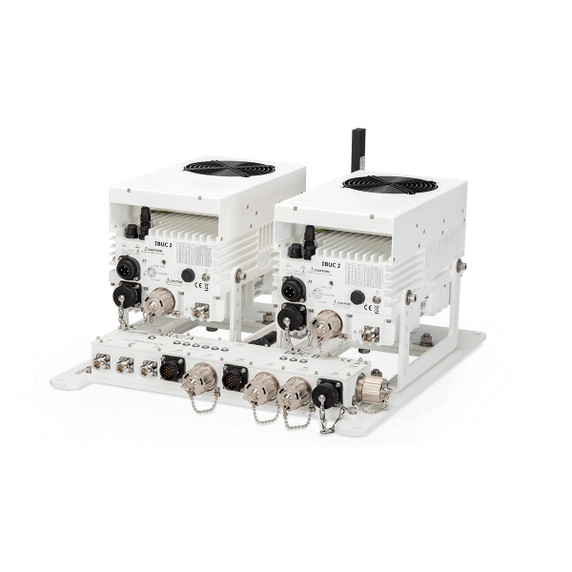

| KEY SPECIFICATIONS | |
| Available Power | 5-60W GaAs; 100W GaN |
| Band | X-Band |
| BUC Unit Size | 266.7 x 152.4 x 127 mm |
| Frequency Range | 950 - 2150 MHz |
| FSK Communication Frequency Range | 580 - 720 kHz |
| RF SPECIFICATIONS | |
| 10Mhz Reference Insertion Loss | 4 dB Max (includes split) |
| FSK Communication Insertion Loss | 5 dB max (includes split) |
| Gain Flatness (36Mhz) | 1 dB p-p max |
| Gain Flatness (Over Full Band) | 2 dB p-p max |
| Input VSWR | 1.5 : 1 max for N Connector; 2.0 : 1 max for F Connector; 2.0 : 1 max for F Connector |
| Insertion Loss | 5 dB max (includes split) |
| Output VSWR | 1.5 : 1 max for N Connector; 2.0 : 1 max for F Connector; 2.0 : 1 max for F Connector |
| Waveguide Switch Frequency | 7.05 - 10.00 GHz |
| Waveguide Switch Insertion Loss | 0.05 dB max. |
| Waveguide Switch Isolation | 80 dB min. |
| Waveguide Switch VSWR | 1.10 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
| Power Supply | Provided by the MEDIAN BUCs |
| INTERFACE SPECIFICATIONS | |
| LED Indicators | Power, A and B Alarm, Ethernet Activity (A side, B side, User Interface Ethernet (RJ-45), User Interface (Circular Connector), AUX Ethernet), A and B online, Multiband |
| Waveguide | WR112 |
| Waveguide Switch Switching Time | 100 ms max. |
| WG Switch Control | Pulse for WG switch generated at the IBUCs. Manual/Auto: Controller pulses WG switch; emergency: toggle trigers pulse for WG switch |
| M AND C SPECIFICATIONS | |
| Connectors | RJ-45 (J8 and J10); PT02E-14-19S (J9) |
| M And C Interface | Ethernet, RS232/485, Handheld terminal (applicable to both A and B sides) |
| Summary Alarm | A and B Form-C Relays |
| ENVIRONMENTAL SPECIFICATIONS | |
| Altitude | 3,000 m ASL |
| Humidity | 100% condensing |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Sensors | A and B L-Band Input Composite Level, 10 MHz Reference Level Detectors for: External demodulator, External reference, Internal reference (single or dual) |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in United States of America |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517620090 |
| Unit Package Dimensions | 685 x 510 x 330 mm |
| Unit Package Weight | 25 kg |
| Warranty | 3 years |
| KEY SPECIFICATIONS | |
| Available Power | 5-60W GaAs; 100W GaN |
| Band | X-Band |
| BUC Unit Size | 266.7 x 152.4 x 127 mm |
| Frequency Range | 950 - 2150 MHz |
| FSK Communication Frequency Range | 580 - 720 kHz |
| RF SPECIFICATIONS | |
| 10Mhz Reference Insertion Loss | 4 dB Max (includes split) |
| FSK Communication Insertion Loss | 5 dB max (includes split) |
| Gain Flatness (36Mhz) | 1 dB p-p max |
| Gain Flatness (Over Full Band) | 2 dB p-p max |
| Input VSWR | 1.5 : 1 max for N Connector; 2.0 : 1 max for F Connector; 2.0 : 1 max for F Connector |
| Insertion Loss | 5 dB max (includes split) |
| Output VSWR | 1.5 : 1 max for N Connector; 2.0 : 1 max for F Connector; 2.0 : 1 max for F Connector |
| Waveguide Switch Frequency | 7.05 - 10.00 GHz |
| Waveguide Switch Insertion Loss | 0.05 dB max. |
| Waveguide Switch Isolation | 80 dB min. |
| Waveguide Switch VSWR | 1.10 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
| Power Supply | Provided by the MEDIAN BUCs |
| INTERFACE SPECIFICATIONS | |
| LED Indicators | Power, A and B Alarm, Ethernet Activity (A side, B side, User Interface Ethernet (RJ-45), User Interface (Circular Connector), AUX Ethernet), A and B online, Multiband |
| Waveguide | WR112 |
| Waveguide Switch Switching Time | 100 ms max. |
| WG Switch Control | Pulse for WG switch generated at the IBUCs. Manual/Auto: Controller pulses WG switch; emergency: toggle trigers pulse for WG switch |
| M AND C SPECIFICATIONS | |
| Connectors | RJ-45 (J8 and J10); PT02E-14-19S (J9) |
| M And C Interface | Ethernet, RS232/485, Handheld terminal (applicable to both A and B sides) |
| Summary Alarm | A and B Form-C Relays |
| ENVIRONMENTAL SPECIFICATIONS | |
| Altitude | 3,000 m ASL |
| Humidity | 100% condensing |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Sensors | A and B L-Band Input Composite Level, 10 MHz Reference Level Detectors for: External demodulator, External reference, Internal reference (single or dual) |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in United States of America |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517620090 |
| Unit Package Dimensions | 685 x 510 x 330 mm |
| Unit Package Weight | 25 kg |
| Warranty | 3 years |
