Norsat International Inc.
Norsat RS-IDU-AU 1U-19'' Indoor Unit

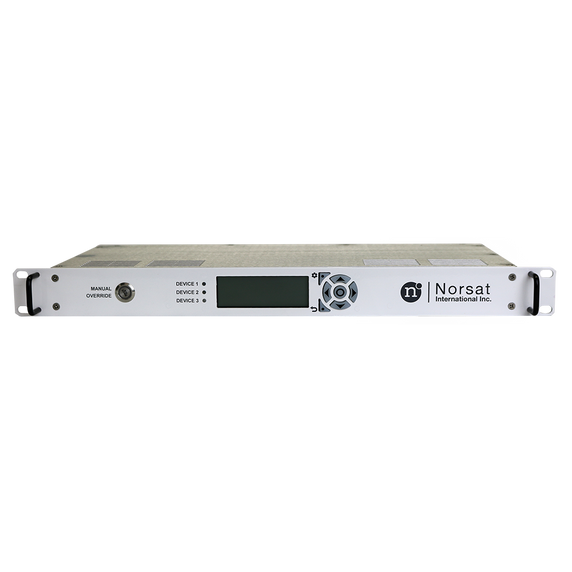

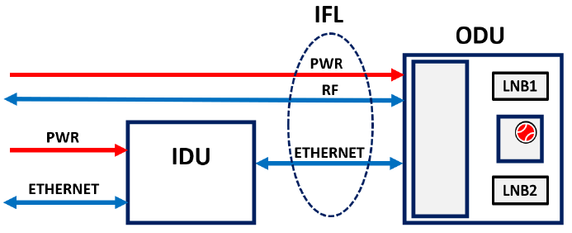

The IDU is an optional add-on to the RSW that will allow a user to interface with the Redundancy Switch (RSW) over an ethernet connection. The IDU will support monitoring and control functionality, as well as provide an audible alarm in the case of a fault on the active device. The IDU shall consist of a 1 RU enclosure, LCD, buttons, indicator LEDs, and a dedicated manual override button.
The IDU shall support the following RSW configurations without any hardware changes:
- LNB 1:1 RSW
- LNB 1:2 RSW
- BUC 1:1 RSW
| ELECTRICAL SPECIFICATIONS | |
| Power | 100 - 240 VAC (50 - 60 Hz) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -5°C to +45°C |
| PHYSICAL SPECIFICATIONS | |
| Product Weight | 1.56 kg |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 1.053 kg |
| Aluminium COO | CA |
| Aluminium Total Value | $ 2.6325 |
| Country Of Origin | Made in Canada |
| Ex Works | Richmond, BC, Canada |
| Unit Package Dimensions | 527 mm x 324 mm x 178 mm |
| Unit Package Height | 178 mm |
| Unit Package Length | 527 mm |
| Unit Package Weight | 0.45 kg |
| Unit Package Width | 324 mm |
| Warranty | 3 years |
