Norsat International Inc.

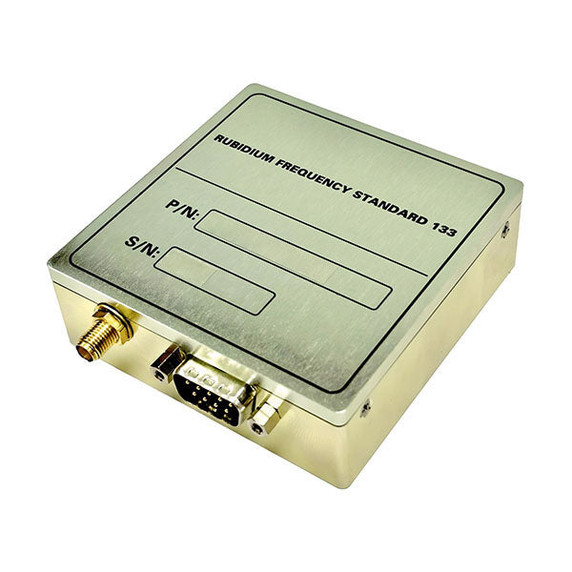

Norsat RFORXYZ-QBC Ultra-Stable Standard Rubidium Frequency Oscillator (Improved Sensitivity & Performance & Long-Term Stability)
Product Code:
RFORXYZ-QBC
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.30 KGS
Width:
7.70
(cm)
Height:
2.54
(cm)
Depth:
7.70
(cm)
$19,800.00
| KEY SPECIFICATIONS | |
| Digital Tuning Range | ±2E-8 |
| Digital Tuning Resolution | 2.0e-11 |
| Long Term Stability | <5E-11/month |
| Output Frequency 1 | 10 MHz |
| Output Frequency 2 | 1PPS |
| Performance | Improved |
| Sensitivity | Improved |
| Short Term Stability | <3E-11@1s, <1E-11@10s, <5E-12@100s, <2E-12@1000s |
| Time Accuracy | 600ns/24hr (disciplined), 15ns RMS (disciplined to ext 1PPS) |
| Unit Type | Standard |
| RF SPECIFICATIONS | |
| Phase Noise Floor | <-150 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Input Voltage | 3.3 VDC ±0.1 |
| Power Consumption | <350 mW |
| Warm Up Time | <130 sec |
| INTERFACE SPECIFICATIONS | |
| Add-On | Configuration continuing type |
| Customer Interface | 1PPS out Diff RS422 |
| Output Signal Format | 10MHz sine +12±2 dBm (50Ω), 1PPS TTL 3V |
| Serial Interface | RS232, LVTTL 3.3V, 9600-115200 baud |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0–95% RH (MIL-STD-810F, Method 507.4) |
| MTBF | 250,000 hours (typical) |
| Operating Temperature | -40°C to +80°C |
| Sensitivity Value | ±3E-10 /g |
| Shock | MIL-STD-202, Method 213 condition A |
| Storage Temperature | -55°C to +85°C |
| Vibration | MIL-STD-810F, Method 514.5 Category 24 |

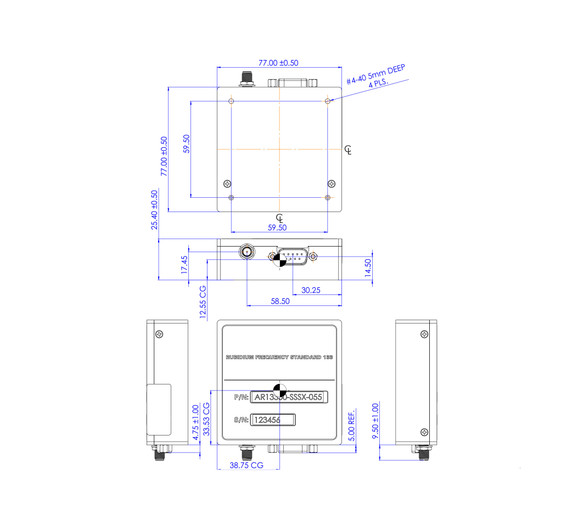

| PHYSICAL SPECIFICATIONS | |
| Product Height | 25.4 mm |
| Product Length | 77 mm |
| Product Weight | 0.295 kg |
| Product Width | 77 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.11 kg |
| Aluminium COO | IL |
| Aluminium Total Value | 0.275 |
| Country Of Origin | Made in Israel |
| Harmonized System Code | 8543709650 |
| Unit Package Dimensions | 220 x 210 x 220 mm |
| Unit Package Weight | 1 kg |
