Norsat International Inc.

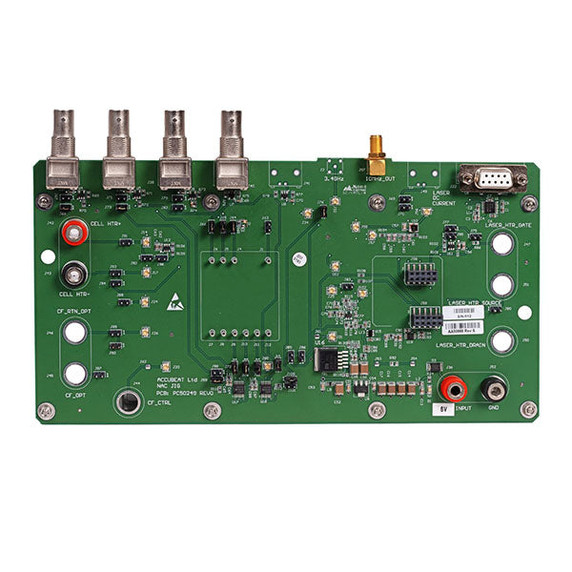

Norsat RFOC-EVAL Nano Atomic Clock Evaluation Kit with USB & GUI
Product Code:
RFOC-EVAL
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.20 KGS
Width:
8.00
(cm)
Height:
3.00
(cm)
Depth:
10.00
(cm)
$11,800.00
Included:
- Nano Atomic Clock Module RFOC01
- Interface board
- Housing, connectors, power & comms interfaces
| KEY SPECIFICATIONS | |
| Allan Deviation 1S | <2E-10 |
| Frequency Stability | <3E-10/month |
| Holdover | ±25 ns sync; <1μs/24h holdover |
| RF SPECIFICATIONS | |
| Output Level | CMOS 3.3V |
| Phase Noise 10Khz | <-143 dBc/Hz |
| Phase Noise 1Hz | <-50 dBc/Hz |
| INTERFACE SPECIFICATIONS | |
| Output Signal Format | CMOS, 3.3V @ 1MΩ |
| Serial Interface | USB or RS-232 interface |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -40°C to +80°C |
| Storage Temperature | -55°C to +85°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 30 mm |
| Product Length | 100 mm |
| Product Weight | 0.2 kg |
| Product Width | 80 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Israel |
| ECCN Number | 5A991.b |
| Harmonized System Code | 9105.91 |
| Unit Package Dimensions | - |
| Unit Package Weight | 0.49 kg |
