Norsat International Inc.

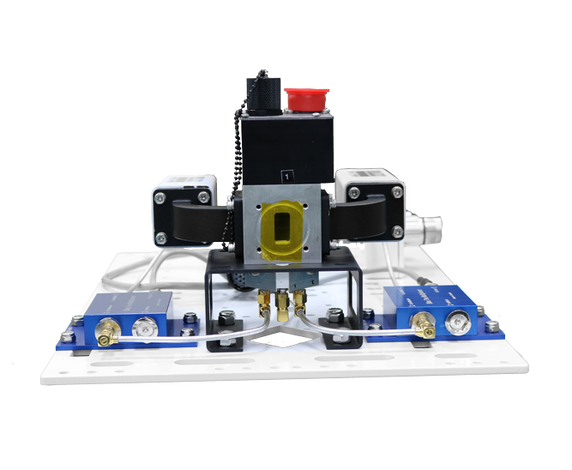

Norsat LNB Redundant Switch SystemRSLNBXSX12R5

Name: Norsat LNB Redundant Switch SystemRSLNBXSX12R5
Brand: Norsat International Inc.
SKU: RSLNBXSX12R5
Price: 28944 USD
Availability: InStock

No reviews yet

Product Code: RSLNBXSX12R5

Availability: YES

Weight: 13.50 KGS

$28,944.00

Norsat’s Redundant Switch Systems automatically detect signal faults and switch to an alternate LNB, LNA or BDC - providing maximum satellite service availability.

KEY SPECIFICATIONS
Product Family	Redundant Switch
Band	X-Band

INTERFACE SPECIFICATIONS
Component Type	LNB
Redundancy	1:2
Tx/Rx Configuration	Rx only

ENVIRONMENTAL SPECIFICATIONS
Temperature - Operational	- 40 to + 60˚C (ODU); 0 to +55˚C (IDU)

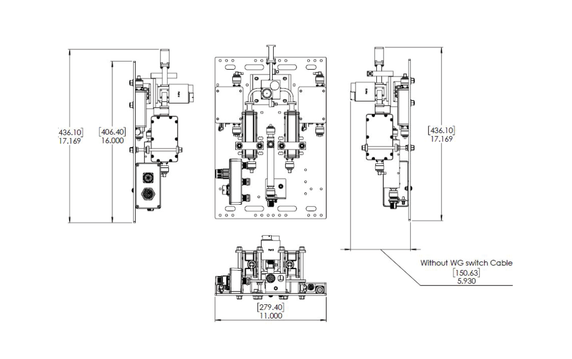

PHYSICAL SPECIFICATIONS
Dimensions (L x W x H)	483 x 159 x 295 mm (ODU); 483 x 44.5 x 508 mm (IDU)
Weight	9kg max.(ODU); 4.5kg max.(IDU)
