Norsat International Inc.

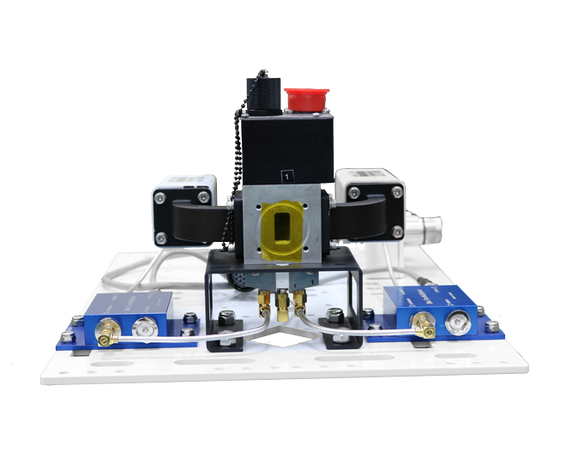

Norsat RSLNBXSKA12R10 LNB Redundant Switch System Single-Band 1:2

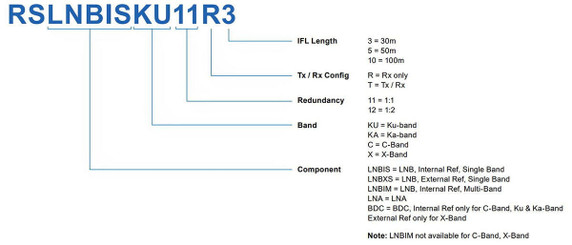

Product Code:
RSLNBXSKA12R10
Condition:
New
Availability:
10 - 12 Weeks
Weight:
9.00 KGS
Width:
15.90
(cm)
Height:
29.50
(cm)
Depth:
48.30
(cm)
$33,120.00
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| Redundancy | 1:2 |
| Switchover Time | 120 ms max. |
| RF SPECIFICATIONS | |
| Input VSWR | LNB Dependent |
| Insertion Loss | 0.5 dB max. |
| ELECTRICAL SPECIFICATIONS | |
| Power | 90 - 264 VAC (47 - 63 Hz) |
| INTERFACE SPECIFICATIONS | |
| IFL Cable Length | 100m |
| RF Input Connector | Ka-Band: WR-42 |
| RF Output Connector | N-Connector |
| Tx Rx Configuration | Rx Only |
| INTERFACE SPECIFICATIONS | |
| Component | LNB, External Ref, Single Band |
| ENVIRONMENTAL SPECIFICATIONS | |
| Relative Humidity | < 100% |
| Temperature Operational | -40°C to +60°c |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 295 mm |
| Product Length | 483 mm |
| Product Weight | 9 kg |
| Product Width | 159 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 7.86 kg |
| Aluminium COO | CA |
| Aluminium Total Value | $ 19.65 |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 584 x 661 x 686 mm |
| Unit Package Height | 686 mm |
| Unit Package Length | 584 mm |
| Unit Package Weight | 54.8 kg |
| Unit Package Width | 661 mm |
| Warranty | 3 years |
