Norsat International Inc.

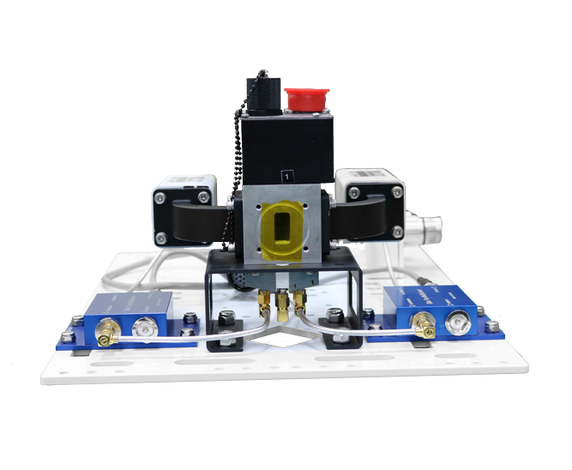

Norsat LNB Redundant Switch System RSLNBXSKA11R3

Name: Norsat LNB Redundant Switch System RSLNBXSKA11R3
Brand: Norsat International Inc.
SKU: RSLNBXSKA11R3
Price: 19872 USD
Availability: InStock

No reviews yet

Product Code: RSLNBXSKA11R3

Availability: YES

Weight: 13.50 KGS

$19,872.00

Norsat’s Redundant Switch Systems automatically detect signal faults and switch to an alternate LNB, LNA or BDC - providing maximum satellite service availability.

KEY SPECIFICATIONS
Product Family	Redundant Switch
Band	Ka-Band

INTERFACE SPECIFICATIONS
Component Type	LNB, External Ref, Single Band
Redundancy	1:1
Tx/Rx Configuration	Rx only

ENVIRONMENTAL SPECIFICATIONS
Temperature - Operational	- 40 to +60˚C (ODU); 0 to +55˚C (IDU)
Humidity	ODU<100%; IDU<95% non-condensing

PHYSICAL SPECIFICATIONS
Dimensions (L x W x H)	483 x 159 x 295 mm (ODU); 483 x 44.5 x 508 mm (IDU)
Weight	9kg max.(ODU); 4.5kg max.(IDU)

More details

5 customers are viewing this product

Details
Specifications
Compare
Additional information

Details

Norsat’s Redundant Switch Systems automatically detect signal faults and switch to an alternate LNB, LNA or BDC - providing maximum satellite service availability.

KEY SPECIFICATIONS
Product Family	Redundant Switch
Band	Ka-Band

INTERFACE SPECIFICATIONS
Component Type	LNB, External Ref, Single Band
Redundancy	1:1
Tx/Rx Configuration	Rx only

ENVIRONMENTAL SPECIFICATIONS
Temperature - Operational	- 40 to +60˚C (ODU); 0 to +55˚C (IDU)
Humidity	ODU<100%; IDU<95% non-condensing

PHYSICAL SPECIFICATIONS
Dimensions (L x W x H)	483 x 159 x 295 mm (ODU); 483 x 44.5 x 508 mm (IDU)
Weight	9kg max.(ODU); 4.5kg max.(IDU)
