Norsat International Inc.

Norsat LNB Redundant Switch System RSLNBISKU12T3

Name: Norsat LNB Redundant Switch System RSLNBISKU12T3
Brand: Norsat International Inc.
SKU: RSLNBISKU12T3
Price: 33696 USD
Availability: InStock

No reviews yet

Product Code: RSLNBISKU12T3

Availability: YES

Weight: 13.50 KGS

$33,696.00

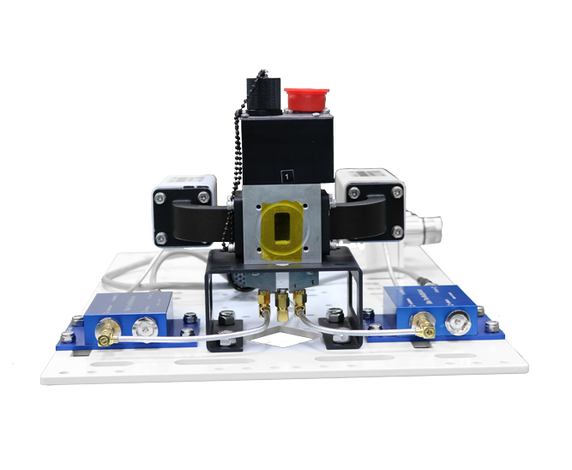

Norsat’s Redundant Switch Systems automatically detect signal faults and switch to an alternate LNB, LNA or BDC - providing maximum satellite service availability.

KEY SPECIFICATIONS
Product Family	Redundant Switch
Band	Ku-Band

INTERFACE SPECIFICATIONS
Component Type	LNB, Internal Ref, Single Band
Redundancy	1:2
Tx/Rx Configuration	Tx/Rx

ENVIRONMENTAL SPECIFICATIONS
Temperature - Operational	- 40 to +60˚C (ODU); 0 to +55˚C (IDU)
Humidity	ODU<100%; IDU<95% non-condensing

PHYSICAL SPECIFICATIONS
Dimensions (L x W x H)	483 x 159 x 295 mm (ODU); 483 x 44.5 x 508 mm (IDU)
Weight	9kg max.(ODU); 4.5kg max.(IDU)

More details

5 customers are viewing this product

Details
Specifications
Compare
Additional information

Details

Norsat’s Redundant Switch Systems automatically detect signal faults and switch to an alternate LNB, LNA or BDC - providing maximum satellite service availability.

KEY SPECIFICATIONS
Product Family	Redundant Switch
Band	Ku-Band

INTERFACE SPECIFICATIONS
Component Type	LNB, Internal Ref, Single Band
Redundancy	1:2
Tx/Rx Configuration	Tx/Rx

ENVIRONMENTAL SPECIFICATIONS
Temperature - Operational	- 40 to +60˚C (ODU); 0 to +55˚C (IDU)
Humidity	ODU<100%; IDU<95% non-condensing

PHYSICAL SPECIFICATIONS
Dimensions (L x W x H)	483 x 159 x 295 mm (ODU); 483 x 44.5 x 508 mm (IDU)
Weight	9kg max.(ODU); 4.5kg max.(IDU)
