Norsat International Inc.
Norsat LNA Redundant Switch System RSLNAKA12R5
Product Code:
RSLNAKA12R5
Availability:
YES
Weight:
13.50 KGS
$22,176.00

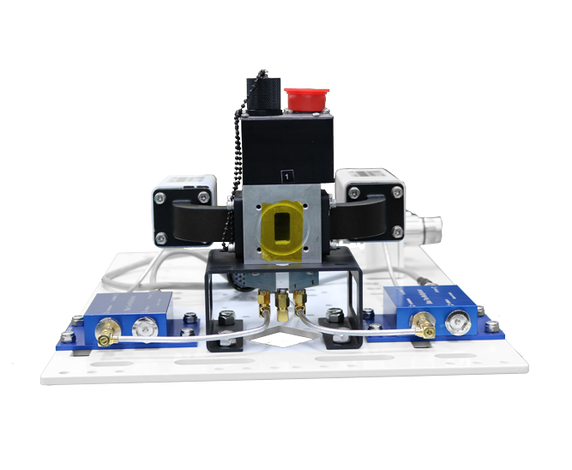

Norsat’s Redundant Switch Systems automatically detect signal faults and switch to an alternate LNB, LNA or BDC - providing maximum satellite service availability.
| KEY SPECIFICATIONS | |
| Product Family | Redundant Switch |
| Band | Ka-Band |
| INTERFACE SPECIFICATIONS | |
| Component Type | LNA |
| Redundancy | 1:2 |
| Tx/Rx Configuration | Rx only |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | - 40 to +60˚C (ODU); 0 to +55˚C (IDU) |
| Humidity | ODU<100%; IDU<95% non-condensing |
| PHYSICAL SPECIFICATIONS | |

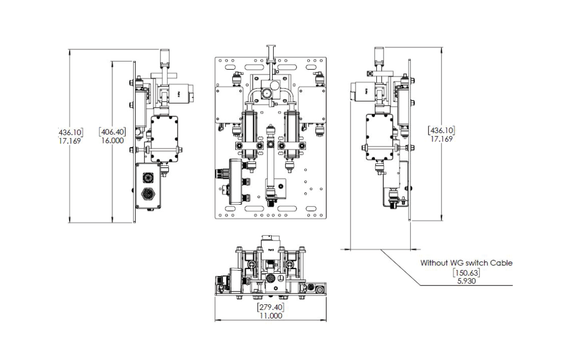

| Dimensions (L x W x H) | 483 x 159 x 295 mm (ODU); 483 x 44.5 x 508 mm (IDU) |
| Weight | 9kg max.(ODU); 4.5kg max.(IDU) |
5 customers are viewing this product
Details
Norsat’s Redundant Switch Systems automatically detect signal faults and switch to an alternate LNB, LNA or BDC - providing maximum satellite service availability.
| KEY SPECIFICATIONS | |
| Product Family | Redundant Switch |
| Band | Ka-Band |
| INTERFACE SPECIFICATIONS | |
| Component Type | LNA |
| Redundancy | 1:2 |
| Tx/Rx Configuration | Rx only |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | - 40 to +60˚C (ODU); 0 to +55˚C (IDU) |
| Humidity | ODU<100%; IDU<95% non-condensing |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | 483 x 159 x 295 mm (ODU); 483 x 44.5 x 508 mm (IDU) |
| Weight | 9kg max.(ODU); 4.5kg max.(IDU) |
