Norsat International Inc.
Norsat RDM080 Ground Radome
Product Code:
RDM080
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
$143,000.00
| KEY SPECIFICATIONS | |
| Design Capability | 1. Electrical performance simulation and test; 2. Mechanical properties simulation |
| Operating Freqency Band | C / X / Ku / Ka / Ku-Ku Dual Frequency or Multi-frequency |
| Structural Form | Truss structure, polygon, random, A interlayer, C interlayer structure |
| ELECTRICAL SPECIFICATIONS | |
| Beam Migration | ≤ 0.02° |
| SW Coefficient | ≤ 5% |
| Transmission Loss Full Radome | ≤ 0.5 dB |
| Transmission Loss Unit Block | ≤ 0.3 dB |
| ENVIRONMENTAL SPECIFICATIONS | |
| Environmental Tests | Mold, salt spray, damp heat, impact resistance all meet the requirements of relevant environmental test standards |
| Humidity | ≤ 98% |
| Ice Burst Impact Resistance | The diameter of hail is not more than 8 cm (weight is not more than 0.24 kg). The radome will not be broken down. |
| Service Life | 10 - 15 years |
| Temperature Operational | -55?C to +70?C |
| Wind Resistance Nondestructive | 67 m/s |
| Wind Resistance Normal Operation | 40 m/s |
| PHYSICAL SPECIFICATIONS | |

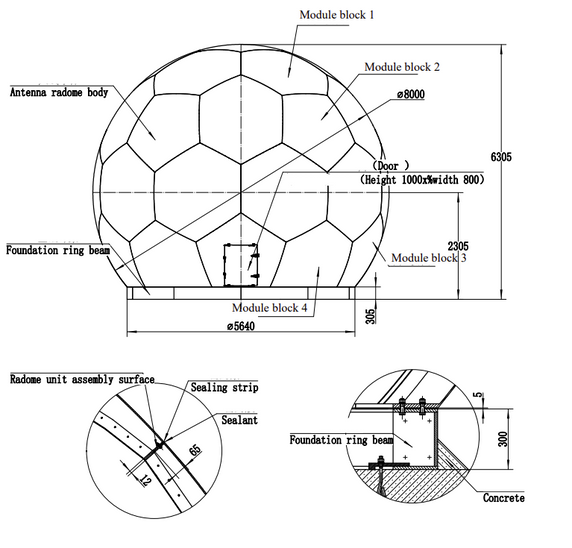

| Radome Diameter | ϕ 8.0m |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 Kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517710000 |
| Warranty | 3 years |
