Norsat International Inc.

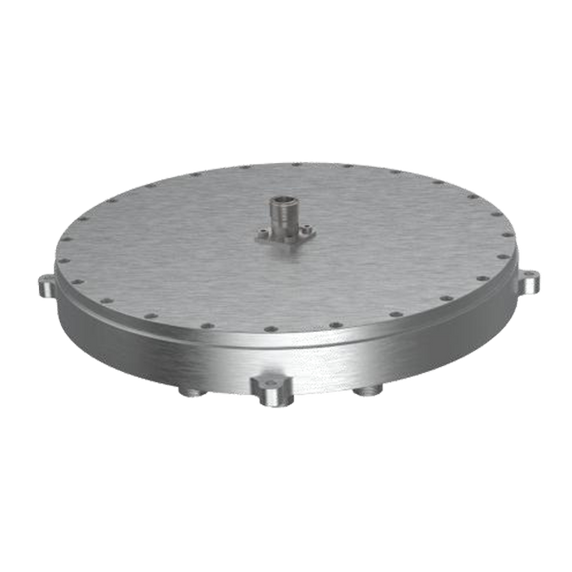

Norsat PSL012L Coaxial Power Splitter (12-Way)
Product Code:
PSL012L
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
$1,825.00
| KEY SPECIFICATIONS | |
| Band | L-Band |
| Frequency | 1 - 1.8 GHz |
| Product Family | Power Splitter |
| RF SPECIFICATIONS | |
| Input VSWR | ≤ 1.5:1 |
| Insertion Loss | ≤ 11dB |
| ELECTRICAL SPECIFICATIONS | |
| Impedance | 50 Ω |
| Power Handling Avg | 100W |
| Power Handling Peak | 3000W |
| INTERFACE SPECIFICATIONS | |
| Connectors Type | N-Female |
| ENVIRONMENTAL SPECIFICATIONS | |
| Indoor Status | Indoor |
| Temperature Operational | -40°C to +75°C |
| PHYSICAL SPECIFICATIONS | |
| Outer Dimensions | Ø 253 x 33 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.65 kg |
| Aluminium Total Value | $ 1.625 |
| Country Of Origin | Made in Thailand |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517799000 |
| Unit Package Dimensions | 85 x 54 x 46 mm |
| Unit Package Height | 46 mm |
| Unit Package Length | 85 mm |
| Unit Package Weight | 0.021 kg |
| Unit Package Width | 54 mm |
| Warranty | 3 years |
