Norsat International Inc.

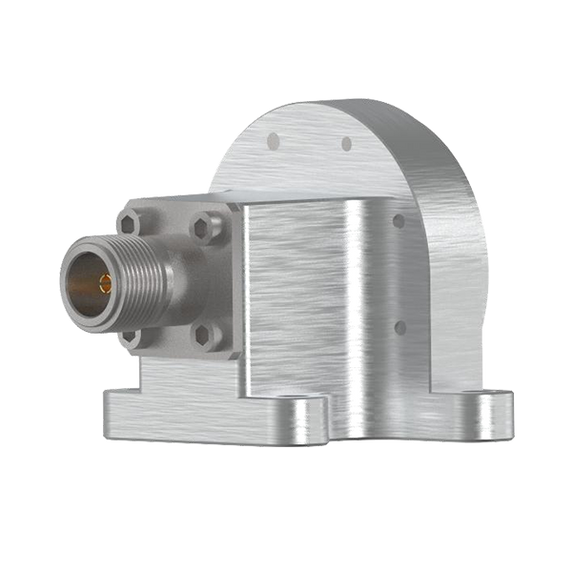

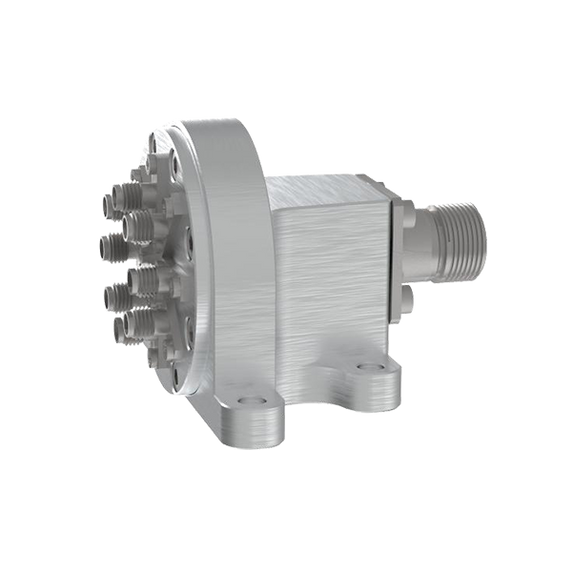

Norsat PSL008 Coaxial Power Splitter (8-Way)
Product Code:
PSL008
Condition:
New
Availability:
4 - 6 Weeks
Weight:
0.00 KGS
Width:
4.42
(cm)
Height:
5.41
(cm)
Depth:
7.50
(cm)
$409.00
| KEY SPECIFICATIONS | |
| Frequency | 6 - 18 GHz |
| Product Family | Power Splitter |
| RF SPECIFICATIONS | |
| Input VSWR | ≤ 1.5:1 |
| Insertion Loss | ≤ 9.5dB |
| ELECTRICAL SPECIFICATIONS | |
| Impedance | 50 Ω |
| Power Handling Avg | 100W |
| Power Handling Peak | 800W |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | N Female |
| RF Output Connector | SMA Female |
| ENVIRONMENTAL SPECIFICATIONS | |
| Indoor Status | Indoor |
| Temperature Operational | -40°C to +75°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 54.1 mm |
| Product Length | 75 mm |
| Product Width | 44.2 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 Kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in Thailand |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517799000 |
| Unit Package Dimensions | 85 x 54 x 46 mm |
| Unit Package Height | 46 mm |
| Unit Package Length | 85 mm |
| Unit Package Weight | 0.021 kg |
| Unit Package Width | 54 mm |
| Warranty | 3 years |
