Norsat International Inc.

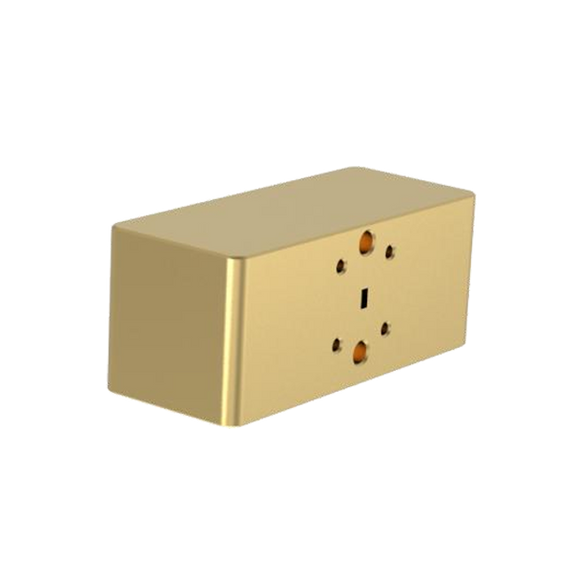

Norsat PSL004W Waveguide Power Splitter (4-Way)
Product Code:
PSL004W
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
Width:
2.14
(cm)
Height:
2.10
(cm)
Depth:
5.00
(cm)
$3,778.00
| KEY SPECIFICATIONS | |
| Band | W-Band |
| Frequency | 75 - 110 GHz |
| Product Family | Power Splitter |
| RF SPECIFICATIONS | |
| Input VSWR | ≤ 1.3 : 1 |
| Insertion Loss | ≤ 6.5 dB |
| Isolation | ≥ 18 dB |
| ELECTRICAL SPECIFICATIONS | |
| Impedance | 50 Ω |
| Power Handling Avg | 30W |
| INTERFACE SPECIFICATIONS | |
| Connectors Type | WR10 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Indoor Status | Indoor |
| Temperature Operational | -40°C to +75°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 21 mm |
| Product Length | 50 mm |
| Product Width | 21.4 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in Thailand |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517799000 |
| Unit Package Dimensions | 85 x 54 x 46 mm |
| Unit Package Height | 46 mm |
| Unit Package Length | 85 mm |
| Unit Package Weight | 0.021 kg |
| Unit Package Width | 54 mm |
| Warranty | 3 years |
