Norsat International Inc.
Norsat PS600-AT1-CN 600W ATOM Power Supply

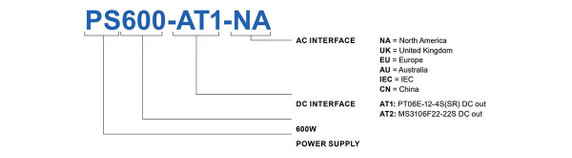

Product Code:
PS600-AT1-CN
Condition:
New
Availability:
1 - 2 Weeks
Weight:
3.90 KGS
Width:
14.40
(cm)
Height:
4.85
(cm)
Depth:
28.00
(cm)
$2,000.00
Norsat's Power Supply provides power for ATOM BUCs.
| KEY SPECIFICATIONS | |
| Color | Silver |
| Input Frequency Band 1 | 47 - 63 Hz |
| Output Power Rated | 600W |
| ELECTRICAL SPECIFICATIONS | |
| Input Voltage | 90 - 305 VAC |
| Output Voltage | +48 V |
| Output Voltage Accuracy | +/- 5% of output voltage |
| Output Voltage Ripple Noise | 1.0V Peak-to-Peak |
| Rated Current | 12.5 A |
| INTERFACE SPECIFICATIONS | |

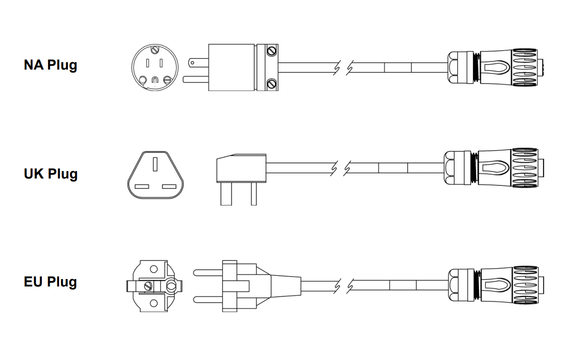

| AC Input Cable | 5m (16.5 ft), China (Type I) |
| DC Output Cable | 2m (6 ft) Socket reference: PTO6E-12-4S-476 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -35°C to +70°C |
| Temperature Storage | -40 to +85˚C |
| PHYSICAL SPECIFICATIONS | |
| Color | Silver |
| Cooling | Passive / Fanless |
| Product Height | 48.5 mm |
| Product Length | 280 mm |
| Product Weight | 3.9 kg |
| Product Width | 144 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.89 kg |
| Aluminium COO | CN |
| Aluminium Total Value | $ 2.225 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 280 x 144 x 48.5 mm |
| Unit Package Height | 48.5 mm |
| Unit Package Length | 280 mm |
| Unit Package Width | 144 mm |
| Warranty | 3 years |
