Norsat International Inc.
Norsat PS480-ELMT2-AU 480W ELEMENT Power Supply
Product Code:
PS480-ELMT2-AU
Condition:
New
Availability:
10 - 12 Weeks
Weight:
2.80 KGS
Width:
12.50
(cm)
Height:
4.38
(cm)
Depth:
26.20
(cm)
$1,500.00
| KEY SPECIFICATIONS | |
| Color | Silver |
| Input Frequency Band 1 | 47 - 63 Hz |
| Output Power Rated | 480W |
| ELECTRICAL SPECIFICATIONS | |
| Input Voltage | 90 - 305 VAC |
| Output Voltage | +48 V |
| Output Voltage Accuracy | 1% of output voltage |
| Output Voltage Ripple Noise | 250mVp-p |
| Rated Current | 10 A |
| INTERFACE SPECIFICATIONS | |

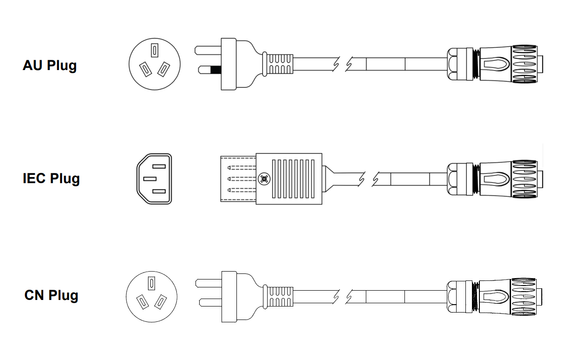

| AC Input Cable | Australia |
| AC Input Cable Lenght | 5m (16.5ft) |
| DC Output Cable | Socket reference: MS3116F-12-3S |
| DC Output Cable Lenght | 2m (6ft) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40°C to +90°C |
| Temperature Storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Color | Silver |
| Cooling | Passive / Fanless |
| Product Height | 43.8 mm |
| Product Length | 262 mm |
| Product Weight | 2.8 kg |
| Product Width | 125 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Warranty | 3 years |
