Norsat International Inc.
Norsat PS300-ELMT3-CN 300W ELEMENT Power Supply
Product Code:
PS300-ELMT3-CN
Condition:
New
Availability:
10 - 12 Weeks
Weight:
1.54 KGS
Width:
9.80
(cm)
Height:
4.45
(cm)
Depth:
25.10
(cm)
$1,000.00
| KEY SPECIFICATIONS | |
| Color | Silver |
| Input Frequency Band 1 | 47 - 63 Hz |
| Output Power Rated | 300W |
| ELECTRICAL SPECIFICATIONS | |
| Input Voltage | 90 - 305 VAC |
| Output Voltage | +48 V |
| Output Voltage Accuracy | ±5% of output voltage |
| Output Voltage Ripple Noise | 2.0% pk-pk |
| Rated Current | 6.25 A |
| INTERFACE SPECIFICATIONS | |

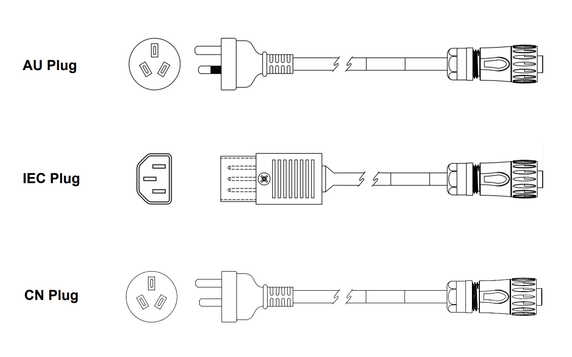

| AC Input Cable | China |
| AC Input Cable Lenght | 5m (16.5ft) |
| DC Output Cable | Socket reference: PT06E-14-12S |
| DC Output Cable Lenght | 2m (6ft) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -35°C to +70°C |
| Temperature Storage | -40 to +85˚C |
| PHYSICAL SPECIFICATIONS | |
| Color | Silver |
| Cooling | Passive / Fanless |
| Product Height | 44.5 mm |
| Product Length | 251 mm |
| Product Weight | 1.54 kg |
| Product Width | 98 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Warranty | 3 years |
