Norsat International Inc.

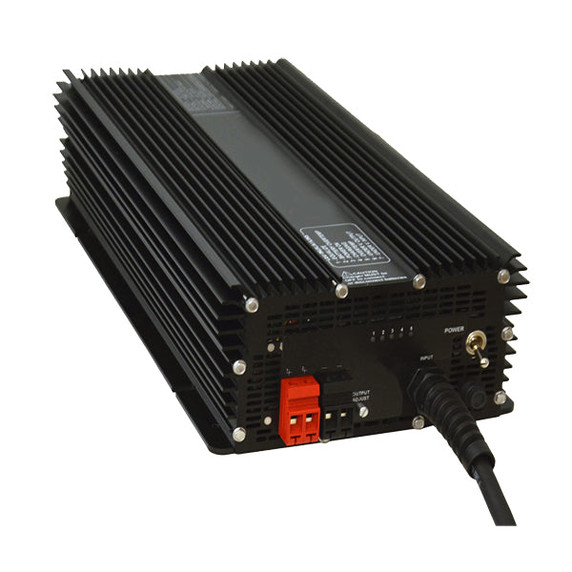

Norsat PS1000-AD24W7 1000W Power Supply (100-240 VAC, 50-60 Hz)
Product Code:
PS1000-AD24W7
Condition:
New
Availability:
10 - 12 Weeks
Weight:
10.00 KGS
Width:
20.80
(cm)
Height:
9.70
(cm)
Depth:
42.70
(cm)
$4,090.00
| ELECTRICAL SPECIFICATIONS | |
| AC Input Continuous Current | 12A |
| DC Output Actual Voltage | 27.2V |
| DC Output Continuous Current | 36A |
| DC Output Nominal Voltage | 24V |
| DC Output Peak Current | 44A |
| ENVIRONMENTAL SPECIFICATIONS | |
| Environment | indoor/outdoor |
| IP Rating | IP67 |
| Isolation | Input-Case, Input-Output and Output-Case: 1500 VDC |
| Safety | Built to meet CSA22.2 / UL1012 |
| Shock And Vibration | Ruggedized for Shock and Vibration |
| Temperature Operational | -40°C to +55°C |
| Temperature Storage | -40°C to +100°C |
| Typical Service Life | > 10 years (87,600 hrs) |
| PHYSICAL SPECIFICATIONS | |
| AC Input Connections | NEMA 5-15 (N. America) or CEE 7/7 (Euro.) plug with 2.5m AWG14 cable |
| Clearance | Minimum 1" |
| DC Output Connections | 4x color-coded flying input leads encased in a watertight Sealcon gland |
| Encasement Material And Finish | Anodized Aluminum |
| Mounting | Wall or Shelf |
| Product Height | 97 mm |
| Product Length | 427 mm |
| Product Weight | 10 kg |
| Product Width | 208 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 4.95 kg |
| Aluminium COO | CN |
| Aluminium Total Value | 12.37 |
| Country Of Origin | Canada |
| ECCN Number | EAR99 |
| Harmonized System Code | 8504409570 |
| Unit Package Dimensions | 556 x 254 x 229 mm |
| Unit Package Weight | 11 kg |
| Warranty | 5 years |
5 customers are viewing this product
Details
| ELECTRICAL SPECIFICATIONS | |
| AC Input Continuous Current | 12A |
| DC Output Actual Voltage | 27.2V |
| DC Output Continuous Current | 36A |
| DC Output Nominal Voltage | 24V |
| DC Output Peak Current | 44A |
| ENVIRONMENTAL SPECIFICATIONS | |
| Environment | indoor/outdoor |
| IP Rating | IP67 |
| Isolation | Input-Case, Input-Output and Output-Case: 1500 VDC |
| Safety | Built to meet CSA22.2 / UL1012 |
| Shock And Vibration | Ruggedized for Shock and Vibration |
| Temperature Operational | -40°C to +55°C |
| Temperature Storage | -40°C to +100°C |
| Typical Service Life | > 10 years (87,600 hrs) |
| PHYSICAL SPECIFICATIONS | |
| AC Input Connections | NEMA 5-15 (N. America) or CEE 7/7 (Euro.) plug with 2.5m AWG14 cable |
| Clearance | Minimum 1" |
| DC Output Connections | 4x color-coded flying input leads encased in a watertight Sealcon gland |
| Encasement Material And Finish | Anodized Aluminum |
| Mounting | Wall or Shelf |
| Product Height | 97 mm |
| Product Length | 427 mm |
| Product Weight | 10 kg |
| Product Width | 208 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 4.95 kg |
| Aluminium COO | CN |
| Aluminium Total Value | 12.37 |
| Country Of Origin | Canada |
| ECCN Number | EAR99 |
| Harmonized System Code | 8504409570 |
| Unit Package Dimensions | 556 x 254 x 229 mm |
| Unit Package Weight | 11 kg |
| Warranty | 5 years |
