New
Zoom the image with the mouse
Norsat International Inc.
Norsat PS-100049 480W Power Supply
Product Code:
PS-100049
Condition:
New
Availability:
1 - 2 Weeks
Weight:
2.80 KGS
Width:
12.50
(cm)
Height:
4.38
(cm)
Depth:
26.20
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Input Frequency Band 1 | 47 - 63 Hz |
| Output Power Rated | 480W |
| ELECTRICAL SPECIFICATIONS | |
| Input Voltage | 90 - 305 VAC |
| Output Voltage | +48 V |
| Output Voltage Accuracy | +/- 5% of output voltage |
| Output Voltage Ripple Noise | 1.0V Peak-to-Peak |
| Rated Current | 10 A |
| INTERFACE SPECIFICATIONS | |

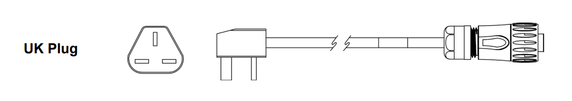

| AC Input Cable | 5m (16.5 ft), United Kingdom (BS 1363) |
| DC Output Cable | 2m (6 ft) Socket reference: ACS 02E14S-6S (553) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -35°C to +70°C |
| Temperature Storage | -40 to +85˚C |
| PHYSICAL SPECIFICATIONS | |
| Colour | Silver |
| Cooling | Passive / Fanless |
| Product Height | 43.8 mm |
| Product Length | 262 mm |
| Product Weight | 2.8 kg |
| Product Width | 125 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.74 kg |
| Aluminium COO | TW |
| Aluminium Total Value | $ 1.85 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8504409530 |
| Unit Package Dimensions | 251 x 98 x 44.5 mm |
| Unit Package Height | 44.5 mm |
| Unit Package Length | 251 mm |
| Unit Package Width | 98 mm |
| Warranty | 1 year |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Input Frequency Band 1 | 47 - 63 Hz |
| Output Power Rated | 480W |
| ELECTRICAL SPECIFICATIONS | |
| Input Voltage | 90 - 305 VAC |
| Output Voltage | +48 V |
| Output Voltage Accuracy | +/- 5% of output voltage |
| Output Voltage Ripple Noise | 1.0V Peak-to-Peak |
| Rated Current | 10 A |
| INTERFACE SPECIFICATIONS | |
| AC Input Cable | 5m (16.5 ft), United Kingdom (BS 1363) |
| DC Output Cable | 2m (6 ft) Socket reference: ACS 02E14S-6S (553) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -35°C to +70°C |
| Temperature Storage | -40 to +85˚C |
| PHYSICAL SPECIFICATIONS | |
| Colour | Silver |
| Cooling | Passive / Fanless |
| Product Height | 43.8 mm |
| Product Length | 262 mm |
| Product Weight | 2.8 kg |
| Product Width | 125 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.74 kg |
| Aluminium COO | TW |
| Aluminium Total Value | $ 1.85 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8504409530 |
| Unit Package Dimensions | 251 x 98 x 44.5 mm |
| Unit Package Height | 44.5 mm |
| Unit Package Length | 251 mm |
| Unit Package Width | 98 mm |
| Warranty | 1 year |
