Norsat International Inc.
Norsat PS-100035 100W BUC Power Supply
Product Code:
PS-100035
Condition:
New
Availability:
10 - 12 Weeks
Weight:
1.12 KGS
Width:
6.80
(cm)
Height:
3.88
(cm)
Depth:
22.00
(cm)
$0.00
| KEY SPECIFICATIONS | |
| Color | Silver |
| Output Power Rated | 96W |
| ELECTRICAL SPECIFICATIONS | |
| Input Voltage | 90 - 305 VAC (47 - 63 Hz) |
| Output Voltage | +48 V |
| Output Voltage Accuracy | +/- 1.0% of output voltage |
| Output Voltage Ripple Noise | 200 mV Peak-to-Peak |
| Rated Current | 2 A |
| INTERFACE SPECIFICATIONS | |
| AC Input Cable | 5m (16.5 ft), Europe (CEE 7/7) |
| DC Output Cable | 2m (6 ft) Socket reference: ACS02E10SL-4S |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -35 to +70°C |
| Temperature Storage | -40 to +85˚C |

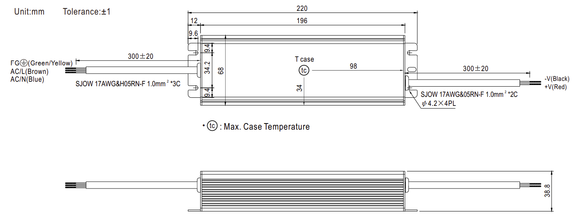

| PHYSICAL SPECIFICATIONS | |
| Color | Silver |
| Cooling | Passive / Fanless |
| Product Height | 38.8 mm |
| Product Length | 220 mm |
| Product Weight | 1.12 kg |
| Product Width | 68 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8504409530 |
