Norsat International Inc.

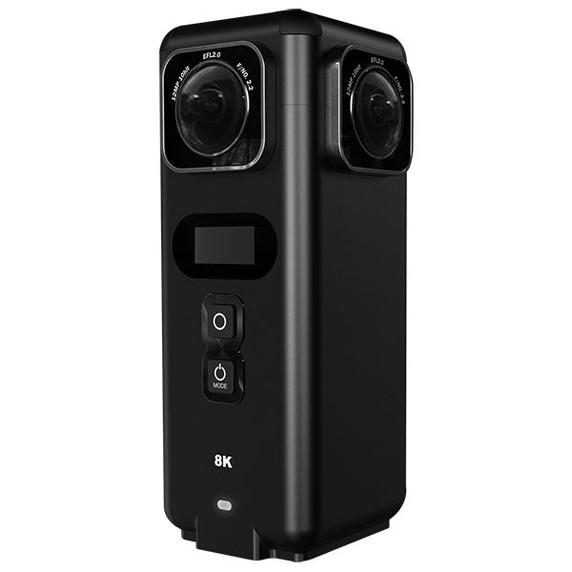

Norsat OPT4200C OPTIVIA 4-Lens 8K Panoramic Camera (Lightweight, In-Camera Stitching)
Product Code:
OPT4200C
Condition:
New
Availability:
4 - 6 Weeks
Weight:
0.62 KGS
Width:
5.50
(cm)
Height:
15.00
(cm)
Depth:
5.50
(cm)
$7,500.00
| KEY SPECIFICATIONS | |
| Battery Capacity | 6800mAh |
| Camera Effective Pixel | 7680 × 3840 (stitched in camera) / 4 channels 3840*2160 |
| Camera FOV Horizontal | 360° |
| Camera FOV Vertical | 360° |
| Data Rates | 1-100MB H264/H265 |
| In-Camera Stitching | Support 8K in-camera_stitching |
| Lens Type | Four 200-degree F2.2 2.0mm fisheye lenses |
| Sensor Size | 1/2.3 inch (×4) |
| Streaming Protocol Support | RTMP/RTSP/RTMP Server/GB/T 28181-2016/SRT |
| Video Record | MP4 |
| ELECTRICAL SPECIFICATIONS | |
| Operating Voltage | 12.6V |
| Power Consumption | 18W |
| INTERFACE SPECIFICATIONS | |
| Communication Interface | 1000M Ethernet |
| Storage | Internal UFS 512GB |
| Supporting Application | Supports In-Camera Stitching, Photography, Video Recording and Live Streaming |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP66 |
| Temperature Operational | -10°C to +40°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 150 mm |
| Product Length | 55 mm |
| Product Weight | 0.62 kg |
| Product Width | 55 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.1 kg |
| Aluminium COO | CN |
| Aluminium Total Value | 0.25 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8525812000 |
| Number Of Packages | 1 |
| Unit Package Dimensions | 400 x 300 x 200 mm |
| Unit Package Weight | 2 kg |
| Warranty | 1 year |
