Norsat International Inc.
Norsat OPT4190B OPTIVIA 4-Lens 8K Panoramic Camera (IP68, Low-Light Enhanced)
$14,200.00
Zoom the image with the mouse
Norsat International Inc.

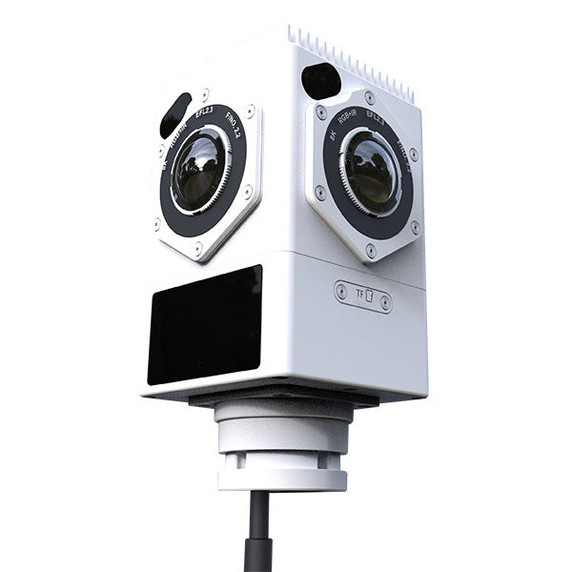

Norsat OPT4190A OPTIVIA 4-Lens 8K Panoramic Camera (AI + IR Fill Light, IP68)
Product Code:
OPT4190A
Condition:
New
Availability:
4 - 6 Weeks
Weight:
1.20 KGS
Width:
7.80
(cm)
Height:
12.30
(cm)
Depth:
7.80
(cm)
$7,400.00
| KEY SPECIFICATIONS | |
| Camera Effective Pixel | 7680 × 3840 (stitched in camera) |
| Camera FOV Horizontal | 360° |
| Camera FOV Vertical | 360° |
| Data Rates | 1-60MB H264/H265 |
| In-Camera Stitching | Support 8K in-camera_stitching |
| Lens Type | Four 190-degree F2.2 2.3mm fisheye lenses |
| Sensor Size | 1/1.8 inch (×4) |
| Streaming Protocol Support | RTMP/RTSP//GB/T 28181-2016 |
| Video Record | MP4 |
| ELECTRICAL SPECIFICATIONS | |
| Operating Voltage | 12.6V |
| Power Consumption | 18W |
| INTERFACE SPECIFICATIONS | |
| Communication Interface | 1000M Ethernet |
| Storage | 32G emmc |
| Supporting Application | Supports In-Camera Stitching, Live Streaming and Surveillance Applications |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP68 |
| Temperature Operational | -30°C to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 123 mm |
| Product Length | 78 mm |
| Product Weight | 1.2 kg |
| Product Width | 78 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.8 kg |
| Aluminium COO | CN |
| Aluminium Total Value | 2 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8525812000 |
| Number Of Packages | 1 |
| Unit Package Dimensions | 400 x 300 x 200 mm |
| Unit Package Weight | 3 kg |
| Warranty | 1 year |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Camera Effective Pixel | 7680 × 3840 (stitched in camera) |
| Camera FOV Horizontal | 360° |
| Camera FOV Vertical | 360° |
| Data Rates | 1-60MB H264/H265 |
| In-Camera Stitching | Support 8K in-camera_stitching |
| Lens Type | Four 190-degree F2.2 2.3mm fisheye lenses |
| Sensor Size | 1/1.8 inch (×4) |
| Streaming Protocol Support | RTMP/RTSP//GB/T 28181-2016 |
| Video Record | MP4 |
| ELECTRICAL SPECIFICATIONS | |
| Operating Voltage | 12.6V |
| Power Consumption | 18W |
| INTERFACE SPECIFICATIONS | |
| Communication Interface | 1000M Ethernet |
| Storage | 32G emmc |
| Supporting Application | Supports In-Camera Stitching, Live Streaming and Surveillance Applications |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP68 |
| Temperature Operational | -30°C to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 123 mm |
| Product Length | 78 mm |
| Product Weight | 1.2 kg |
| Product Width | 78 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.8 kg |
| Aluminium COO | CN |
| Aluminium Total Value | 2 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8525812000 |
| Number Of Packages | 1 |
| Unit Package Dimensions | 400 x 300 x 200 mm |
| Unit Package Weight | 3 kg |
| Warranty | 1 year |
