Norsat International Inc.

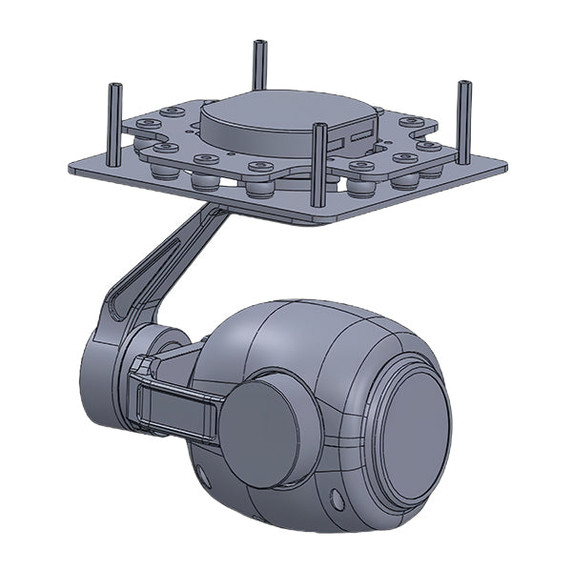

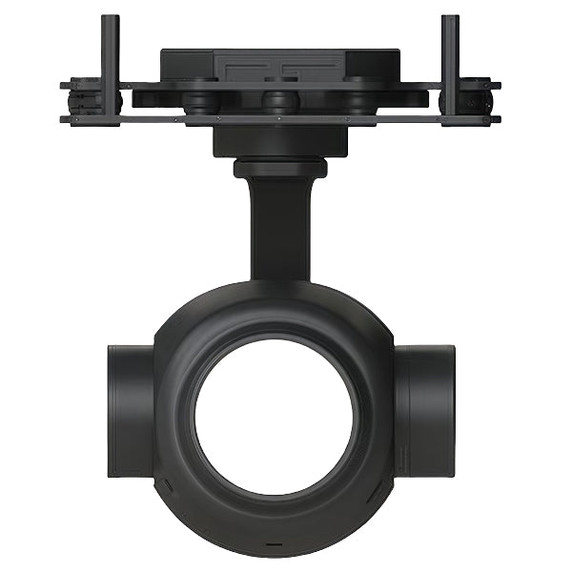

Norsat OPT162BX OPTIVIA 30x Optical Zoom & 3-Axis Stabilization 4K Networked Camera
Product Code:
OPT162BX
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.71 KGS
Width:
14.00
(cm)
Height:
14.40
(cm)
Depth:
16.20
(cm)
$8,800.00
| KEY SPECIFICATIONS | |
| Recording Time | ≥60 min ≥ Small drone flight time |
| Stabilization Accuracy Horizontal Jitter Angle | ±0.03° |
| Stabilization Accuracy Pitch Jitter Angle | ±0.02° |
| Stabilization Accuracy Roll Jitter Angle | ±0.02° |
| Standard Preinstalled Components | 30x Opt. Zoom Visible Light Camera |
| RF SPECIFICATIONS | |
| Visible Light Fov Diagonal | WIDE 67.8° ± 5% TELE 2.77° ± 5% |
| Visible Light Fov Horizontal | WIDE 59.8° ± 5% TELE 2.34° ± 5% |
| Visible Light Fov Vertical | WIDE 40.5° ± 5% TELE 1.48° ± 5% |
| Visible Light Resolution | 4K@30fps /1080P@30fps |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | Dynamic: 6W |
| Power Supply | DC 12V - 26.2V |
| INTERFACE SPECIFICATIONS | |
| Control Method | IP, UART |
| External Interface Communication Interface | TTL |
| External Interface Video Interface | RTSP Stream, IP Output: 4K & 1080P Video; Local TF Card Storage, H264 4K/1080P, Video Streams |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -10°C to +55°C (20% - 80% RH) |
| Temperature Storage | -20°C to +60°C (20% to 95% RH) |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 144 mm |
| Product Length | 162 mm |
| Product Weight | 0.71 kg |
| Product Width | 140 mm |
| Roll Angle Elevation | -45° to +45° |
| Rotation Range Azimuth | 360° continuous rotation |
| Rotation Range Elevation | -45° to +100° |
| Volume | 140 × 162 × 144 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Harmonized System Code | 8525893900 |
| Unit Package Dimensions | 540 x 350 x 380 mm |
| Unit Package Weight | 15 kg |
| Warranty | 1 |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Recording Time | ≥60 min ≥ Small drone flight time |
| Stabilization Accuracy Horizontal Jitter Angle | ±0.03° |
| Stabilization Accuracy Pitch Jitter Angle | ±0.02° |
| Stabilization Accuracy Roll Jitter Angle | ±0.02° |
| Standard Preinstalled Components | 30x Opt. Zoom Visible Light Camera |
| RF SPECIFICATIONS | |
| Visible Light Fov Diagonal | WIDE 67.8° ± 5% TELE 2.77° ± 5% |
| Visible Light Fov Horizontal | WIDE 59.8° ± 5% TELE 2.34° ± 5% |
| Visible Light Fov Vertical | WIDE 40.5° ± 5% TELE 1.48° ± 5% |
| Visible Light Resolution | 4K@30fps /1080P@30fps |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | Dynamic: 6W |
| Power Supply | DC 12V - 26.2V |
| INTERFACE SPECIFICATIONS | |
| Control Method | IP, UART |
| External Interface Communication Interface | TTL |
| External Interface Video Interface | RTSP Stream, IP Output: 4K & 1080P Video; Local TF Card Storage, H264 4K/1080P, Video Streams |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -10°C to +55°C (20% - 80% RH) |
| Temperature Storage | -20°C to +60°C (20% to 95% RH) |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 144 mm |
| Product Length | 162 mm |
| Product Weight | 0.71 kg |
| Product Width | 140 mm |
| Roll Angle Elevation | -45° to +45° |
| Rotation Range Azimuth | 360° continuous rotation |
| Rotation Range Elevation | -45° to +100° |
| Volume | 140 × 162 × 144 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Harmonized System Code | 8525893900 |
| Unit Package Dimensions | 540 x 350 x 380 mm |
| Unit Package Weight | 15 kg |
| Warranty | 1 |
