Norsat International Inc.

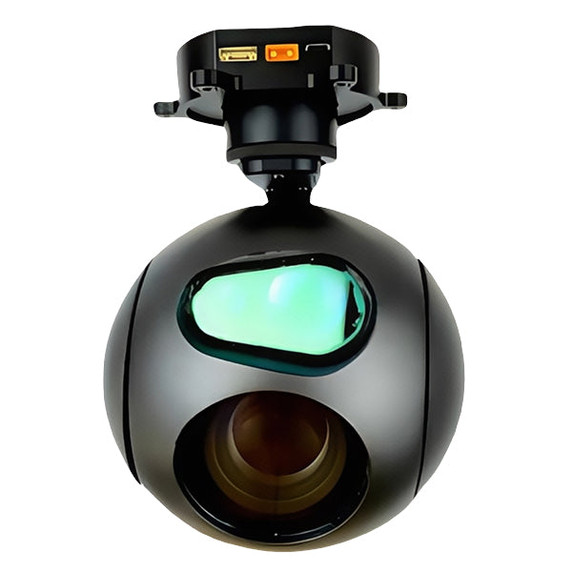

Norsat OPT162BR OPTIVIA 30x EO + 3000m Laser Rangefinder Gimbal Camera
Product Code:
OPT162BR
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.88 KGS
Width:
16.20
(cm)
Height:
17.40
(cm)
Depth:
16.20
(cm)
$37,600.00
| KEY SPECIFICATIONS | |
| Recording Time | ≥60 min ≥ Small drone flight time |
| Stabilization Accuracy Horizontal Jitter Angle | ±0.03° |
| Stabilization Accuracy Pitch Jitter Angle | ±0.02° |
| Stabilization Accuracy Roll Jitter Angle | ±0.02° |
| Standard Preinstalled Components | 30x Opt. Zoom Visible Light Camera; Laser Rangefinder |
| RF SPECIFICATIONS | |
| Laser Rangefinder Accuracy | Acc. ±2m, Ranging Resolution 20m |
| Laser Rangefinder Operating Wavelength | 1535nm ± 5nm |
| Laser Rangefinder Ranging Range | 20 - 3000m |
| Visible Light Fov Diagonal | WIDE 67.8° ± 5% TELE 2.77° ± 5% |
| Visible Light Fov Horizontal | WIDE 59.8° ± 5% TELE 2.34° ± 5% |
| Visible Light Fov Vertical | WIDE 40.5° ± 5% TELE 1.48° ± 5% |
| Visible Light Resolution | 1080P@30fps |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | Standby: 8W |
| Power Supply | DC 12V - 26.2V, the instantaneous voltage of the power supply must not exceed 27V |
| INTERFACE SPECIFICATIONS | |
| Control Method | Speed adaptive control; External control via network/Serial port |
| External Interface Communication Interface | TTL |
| External Interface Video Interface | RTSP Stream, IP Output: 480P & 1080P Video; Local TF Card Storage, 1080P Video Streams |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -10°C to +55°C (20% - 80% RH) |
| Temperature Storage | -30°C to +60°C (20% to 95% RH) |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 174 mm |
| Product Length | 162 mm |
| Product Weight | 0.88 kg |
| Product Width | 162 mm |
| Roll Angle Elevation | -45° to +45° |
| Rotation Range Azimuth | 360° continuous rotation |
| Rotation Range Elevation | -45° to +120° |
| Volume | Φ: 162 × H: 174 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Harmonized System Code | 8525893900 |
| Unit Package Dimensions | 540 x 350 x 380 mm |
| Unit Package Weight | 15 kg |
| Warranty | 1 |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Recording Time | ≥60 min ≥ Small drone flight time |
| Stabilization Accuracy Horizontal Jitter Angle | ±0.03° |
| Stabilization Accuracy Pitch Jitter Angle | ±0.02° |
| Stabilization Accuracy Roll Jitter Angle | ±0.02° |
| Standard Preinstalled Components | 30x Opt. Zoom Visible Light Camera; Laser Rangefinder |
| RF SPECIFICATIONS | |
| Laser Rangefinder Accuracy | Acc. ±2m, Ranging Resolution 20m |
| Laser Rangefinder Operating Wavelength | 1535nm ± 5nm |
| Laser Rangefinder Ranging Range | 20 - 3000m |
| Visible Light Fov Diagonal | WIDE 67.8° ± 5% TELE 2.77° ± 5% |
| Visible Light Fov Horizontal | WIDE 59.8° ± 5% TELE 2.34° ± 5% |
| Visible Light Fov Vertical | WIDE 40.5° ± 5% TELE 1.48° ± 5% |
| Visible Light Resolution | 1080P@30fps |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | Standby: 8W |
| Power Supply | DC 12V - 26.2V, the instantaneous voltage of the power supply must not exceed 27V |
| INTERFACE SPECIFICATIONS | |
| Control Method | Speed adaptive control; External control via network/Serial port |
| External Interface Communication Interface | TTL |
| External Interface Video Interface | RTSP Stream, IP Output: 480P & 1080P Video; Local TF Card Storage, 1080P Video Streams |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -10°C to +55°C (20% - 80% RH) |
| Temperature Storage | -30°C to +60°C (20% to 95% RH) |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 174 mm |
| Product Length | 162 mm |
| Product Weight | 0.88 kg |
| Product Width | 162 mm |
| Roll Angle Elevation | -45° to +45° |
| Rotation Range Azimuth | 360° continuous rotation |
| Rotation Range Elevation | -45° to +120° |
| Volume | Φ: 162 × H: 174 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Harmonized System Code | 8525893900 |
| Unit Package Dimensions | 540 x 350 x 380 mm |
| Unit Package Weight | 15 kg |
| Warranty | 1 |
